limited holes spacing

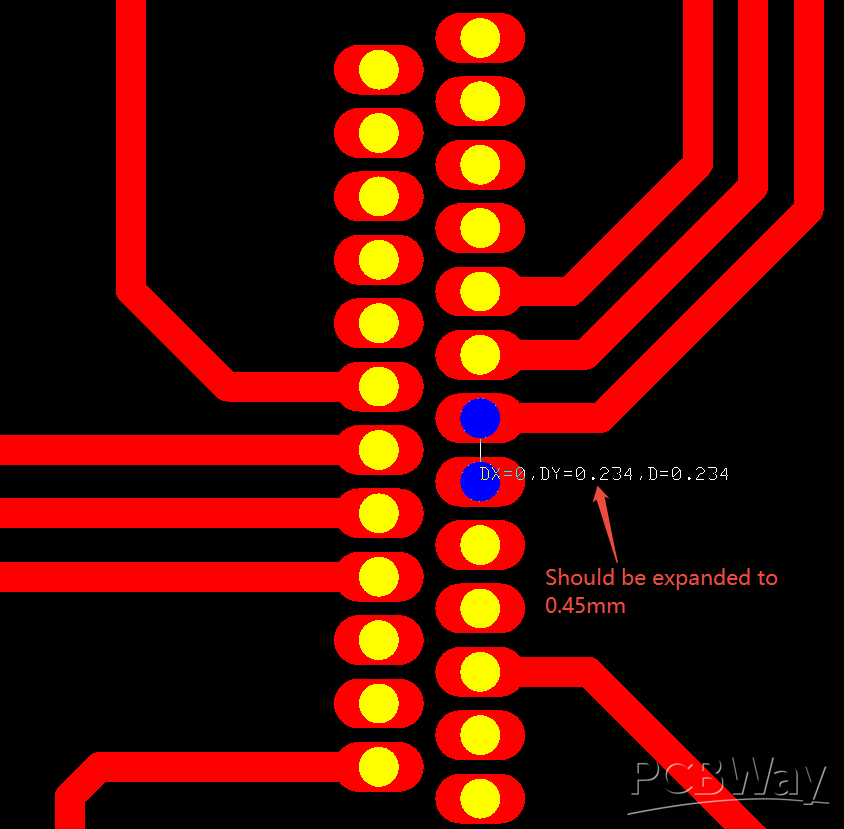

Reason of pending review: the spacing between holes is beyond our capability: min 0.55 for plated through holes, and min 0.35 mm for via holes.

Suggestion:

1: reduce the hole size to reach min 0.55 mm and 0.35 mm spacing neeed

2: expand the spacing directly
