Ultimate Quality
Control

PCBWay is definitely your trusted PCB & PCBA & CNC | 3D Printing partner! In addition to friendly service and on-time delivery, we also focus on producing high-quality products that meet or exceed customers’ expectations.

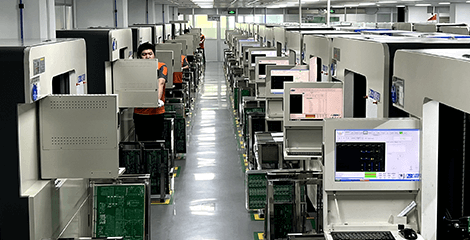

Quality Control

We have implemented the ISO9001 quality system. Quality control has always been an important part of our production process and runs through every link.

Manufacturing Standards

Manufacturing Standards

Our technicians have many years of experience, and have been working strictly in accordance with high requirements and standards.

READ MORE
Quality Control Process

Quality Control Process

We believe that only a complete quality control process is an effective means to ensure quality.

READ MORE
Quality Reports & Certifications

Quality Reports & Certifications

We can provide you with complete quality reports and common certifications as proof of the quality of our products.

READ MORE
Raw Material Download

Raw Material Download

The specifications of the raw materials
used in our production are available for download.

READ MORE

Manufacturing standards

Our experienced technicians will always ensure that all products are of exceptional quality,
reliability and consistency.

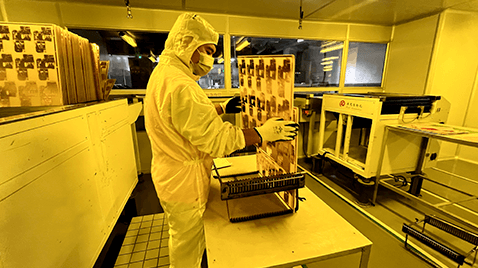

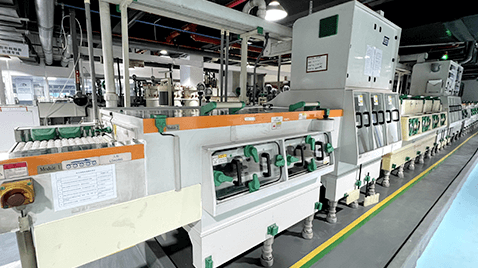

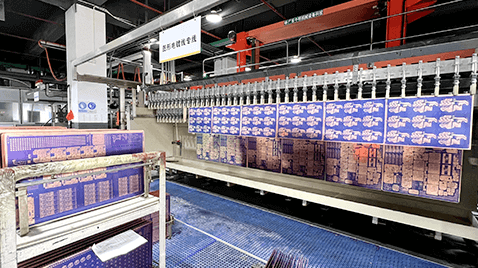

PCB Standards

PCB Production standards follow IPC Class 2,IPC Class 3, ,Automotive Standard, Customer Standard

Item Advanced PCB Standard PCB
Engineering one file/1 days+
Senior engineer
mid-level engineer
(1 files/hours)
Material
Download
Shengyi,Rogers,Arlon,Isola, Omega,Nelco,3M etc.Meet IPC4101 class B/L KB(kingboard)/GDM(goldenmax) Meet IPC4101 class B/L
Ink,Soldermasks
Download
Rohm&Haas,TAIYO,Kuangshun,Meet IPC-SM-840 class T TAIYO,Kuangshun,Meet IPC-SM-840 class T
Drilling Min Mechanical Hole Size 0.15mm,Laser hole 0.1mm Min Mechanical Hole Size 0.2mm
Plating PTH (Hole copper thickness≥20um),IPC 3(25um) PTH(Hole copper thickness≥18um)
Soldermask offset ±2mil ±3mil
Dimensional deviation ±0.13mm ±0.2mm
Warping angle 0.75% 1%
Test method A.O.I,Kelvin Four-terminal sensing,Microsection Inspection,Solderability Test,Impedance Test... A.O.I.,Fly Probe Testing, E-test fixture
Glass transition ℃ >140℃ >130℃
Etched line Forbid to repair tracks(IPC 3,Automotive,Customer Standard) -
Cleanliness Cleanliness requirements beyond those of IPC Cleanliness requirements beyond those of IPC
PCB Standards PCB Standards PCB Standards
Perfect quality system

Quality Control Process

The perfect quality assurance system and various testing equipment help us monitor the entire production process to ensure the stability of the process and product quality. At the same time, we also introduce advanced instruments and technical methods to achieve continuous improvement.

PCB
Quality Control Process
PCB Assembly
Quality Control Process
CNC | 3D
Quality Control Process

1. PCB Files Checking Before Production

For each order submitted, Gerber files will be reviewed by our professional engineers before being sent to production. Engineers will confirm the production feasibility in terms of tolerance constraints such as board edge clearance, drilling, pad spacing, impedance and routing. When the engineer finds a problem with the file or there is something that can be optimized, an EQ will be raised, and our customer service representative will get in touch with you, so as not to delay production.

2. Raw Material Guarantee

The quality of the raw materials determines durability of the finished products. Ensuring the high quality of raw materials is one of the most basic principles for PCBWay to manufacture products. PCBWay has been working with leading suppliers in the industry,and inspect materials according to international standards and customer requirements, such as Shengyi, Rogers, KB (kingboard) sheet, Rohm&Haas, TAIYO high-performance solder mask ink.

Click to view raw materials

3. The World's Leading Production Equipment

In order to ensure the best quality and reliability of PCB products, PCBWay continuously introduces advanced equipment, including but not limited to the following:

● LDI exposure machine
● Automatic solder mask production line
● Fully automatic PCB testing machine
● Fully automatic PCB etching equipment
● Automatic silkscreen printing production line
● Fully automatic electroplating line
View the complete PCBWay production line

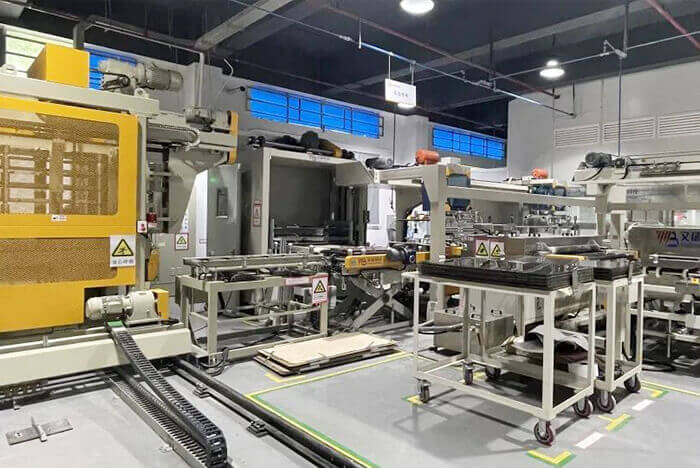

Lamination machine
Lamination machine

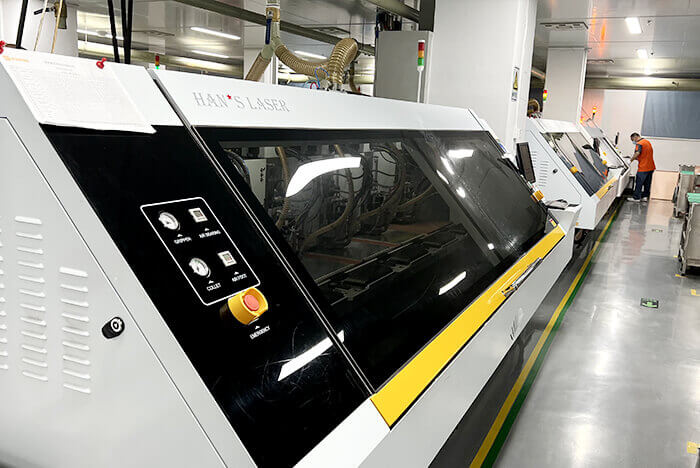

Drilling machine
Drilling machine

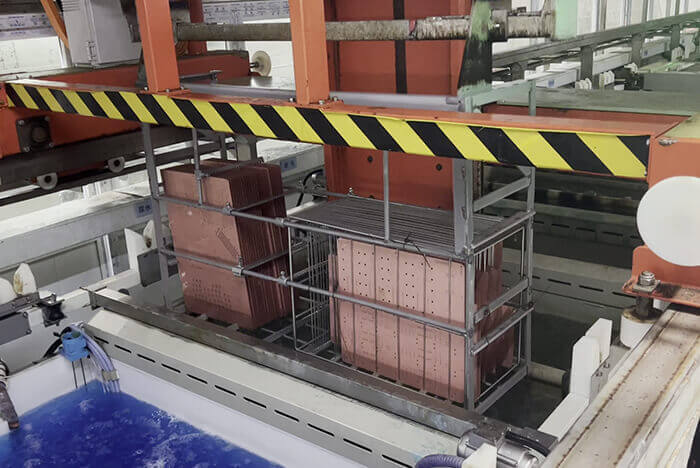

Copper plating
Copper plating

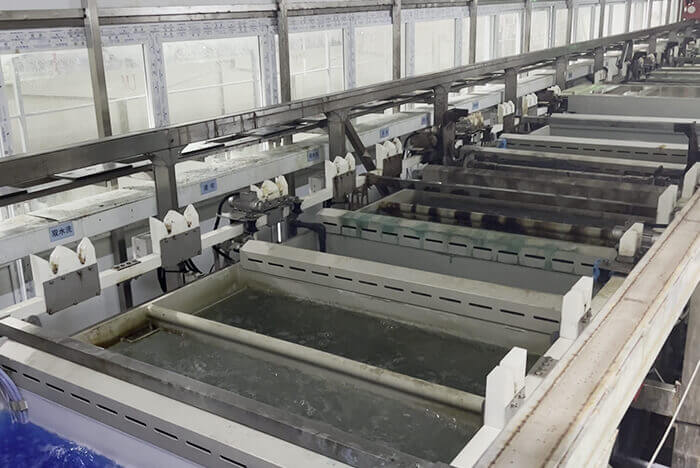

Copper Plating
Copper plating
Electroplating
Electroplating

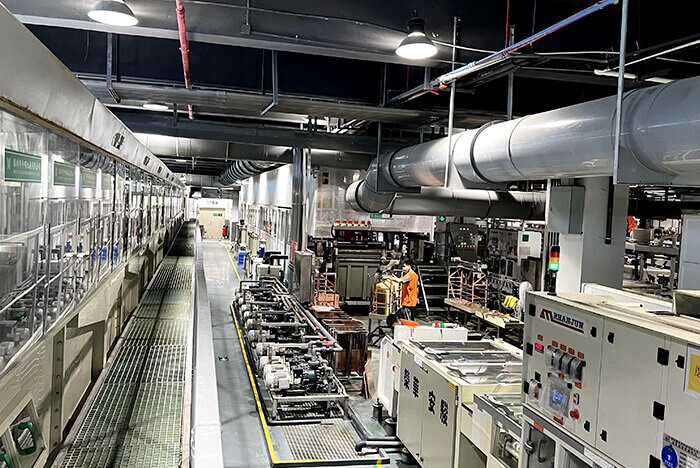

Fully automatic electroplating line
Fully automatic electroplating line

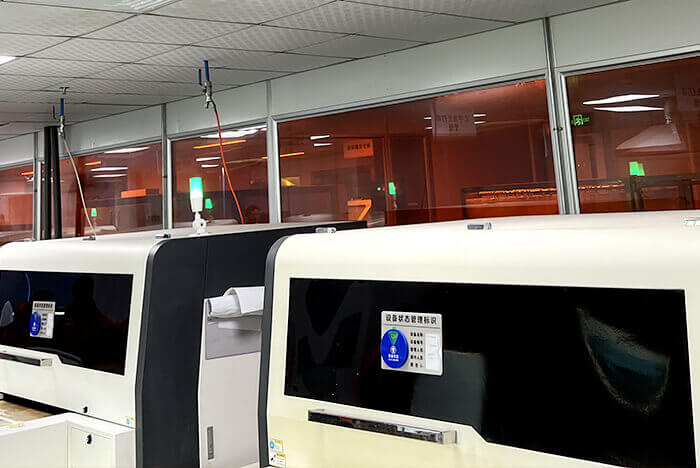

Silkscreen laser printer
Silkscreen laser printer

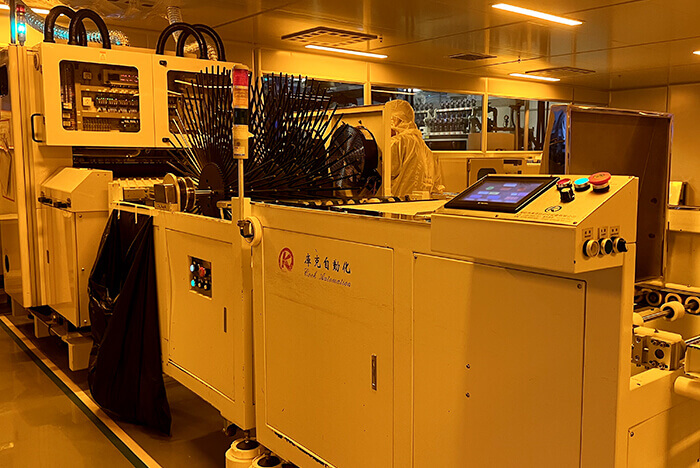

Automatic dry film coating machine
Automatic dry film coating machine

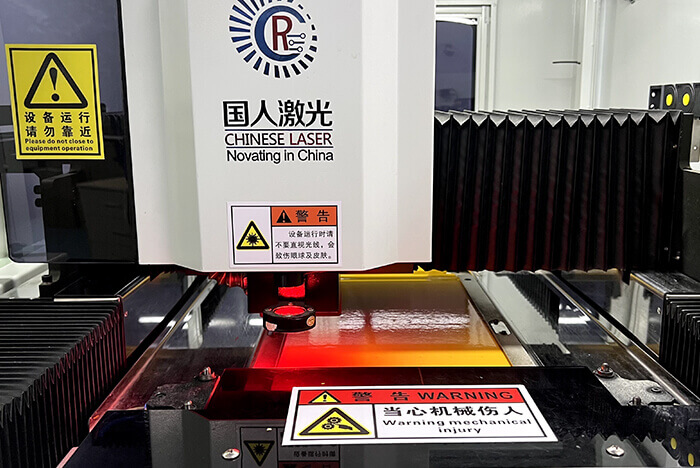

FPC cover film
FPC cover film

4. Quality Inspection Before Shipment

We strictly comply with ISO9001:2015 requirements and all production processes are in line with IPC standards. In addition to basic visual inspections, all boards undergo the most rigorous electrical tests. We use industry-renowned testing and inspection equipment such as Flying Probe Testing, AOI (Automated Optical Inspection) and Copper Thickness Tester.
We guarantee that every PCB in your hand is in good condition and you can proceed to the next step of assembly safely. Various types of test reports are available upon request.

Lamination
01

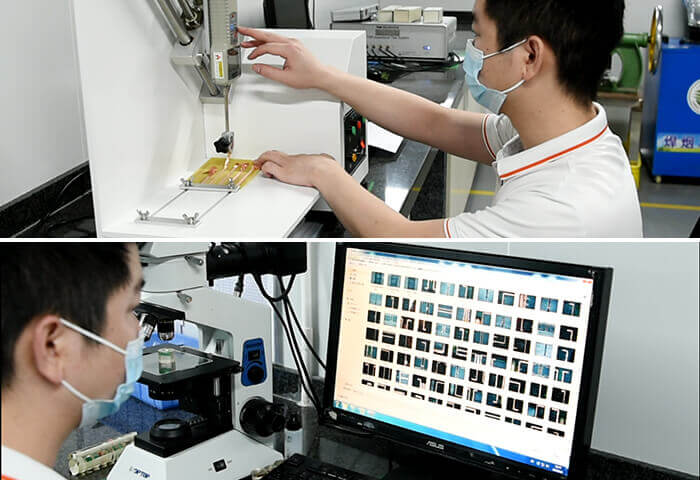

1-Lamination

After lamination, there will be slicing test (to confirm the thickness of the dielectric), thermal shock test (to confirm whether it is delaminated), and also copper foil adhesion test.

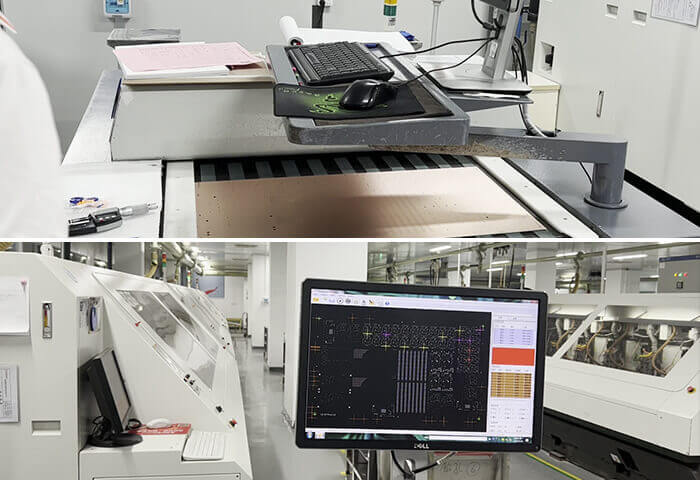

Drilling
02

2-Drilling

We will control the service life of the drill tips. The drill tips are coated, which can prolong the service life and reduce the hole diameter. After drilling, there is a test for roughness of hole side, and drilling machine inspection to check the hole position, aperture, whether there is missing hole or plug hole, etc.

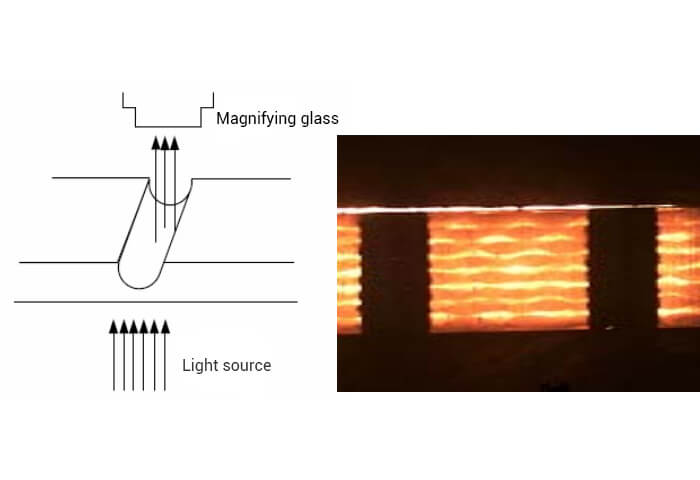

Copper Plating
03

3-Copper Plating

Backlight test is performed after plating process to check the thickness for plated copper.

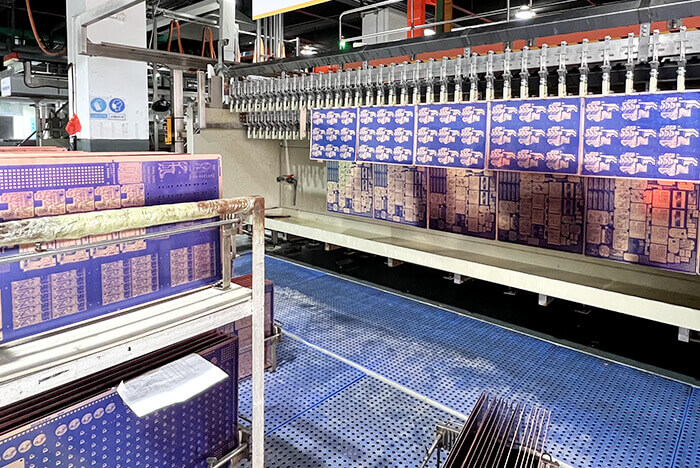

Electroplating
04

4-Electroplating

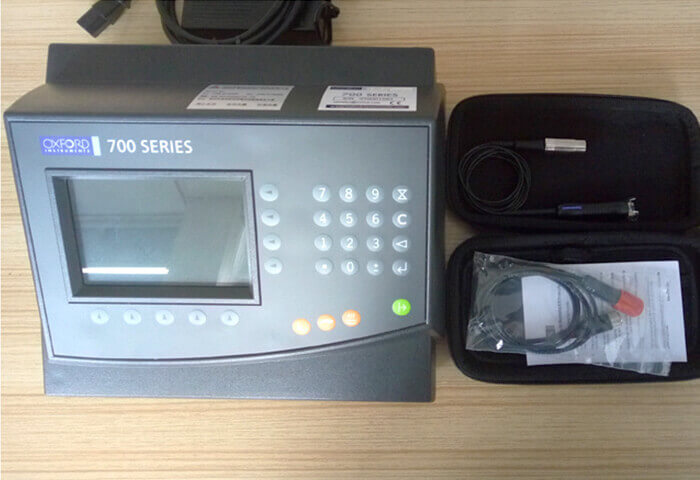

CMI700 will be used to check the surface copper and hole wall copper. We normally use a small current for electroplating to ensure the even copper thickness.

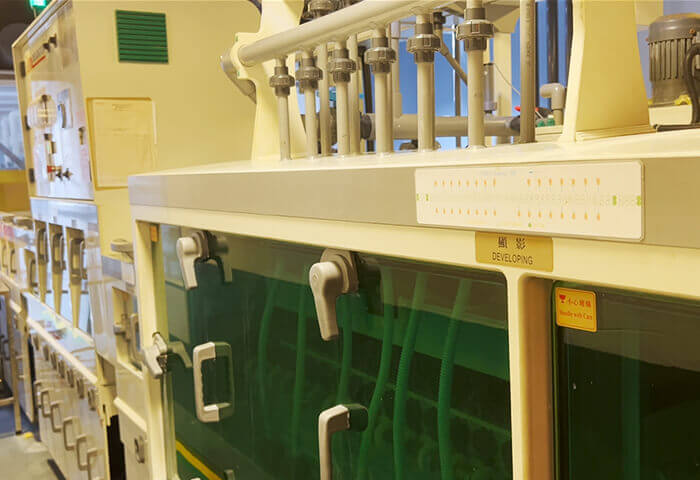

 Developing and Etching
05

5-Developing and Etching

In this process, the engineer will check the width and spacing of the circuits for the first piece, and later perform another random check. There is a checking station for the developing process to ensure the good quality.

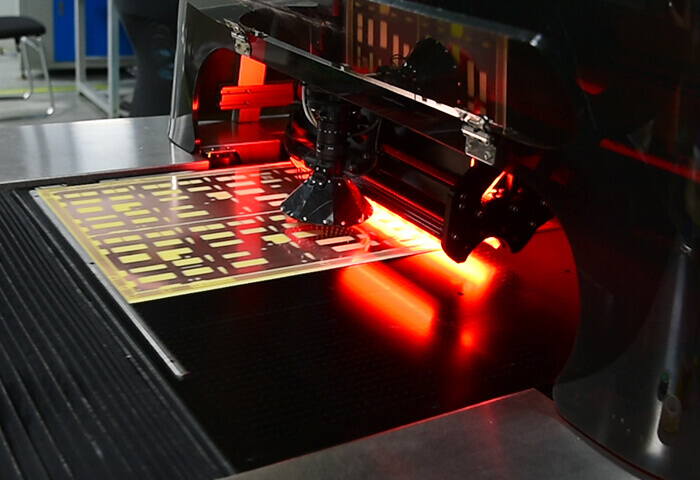

AOI
06

6-AOI

AOI is performed after pattern plating. It is an automated optical inspection of PCBs in which a camera is used to scan the circuit board in extremely fine detail to check for any defects or malfunctions.

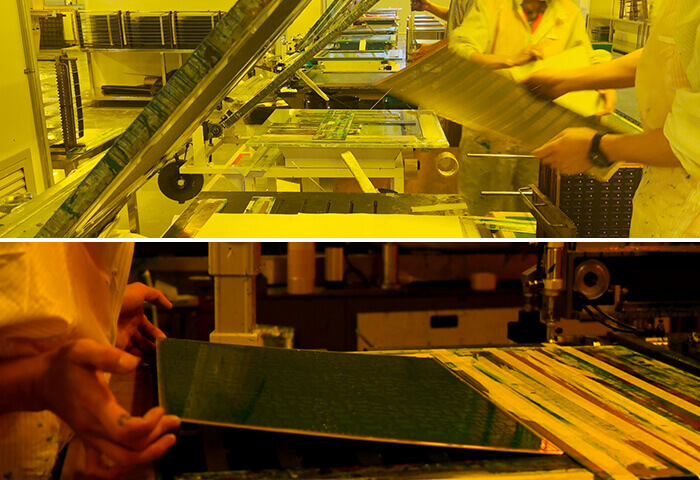

Soldermask and Silkscreen
07

7-Soldermask and Silkscreen

We use LDI,automatic alignment exposure machine, to finish high quality soldermask process. Solder mask and silkscreen have to also go through QC semi-inspection, and there is also QA inspection (spot check) to check whether the solder mask is not fully developed, whether the solder mask enters the hole, whether the silkscreen printing is qualified, and whether the ink is too much to cause thick characters, etc.

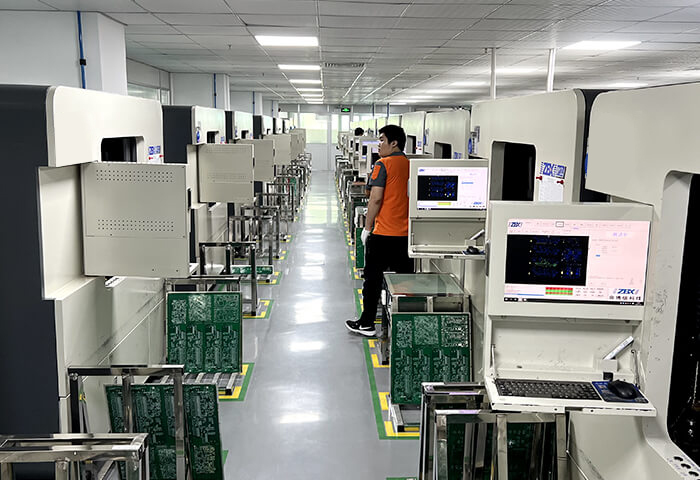

Electrical test
08

8-Electrical test

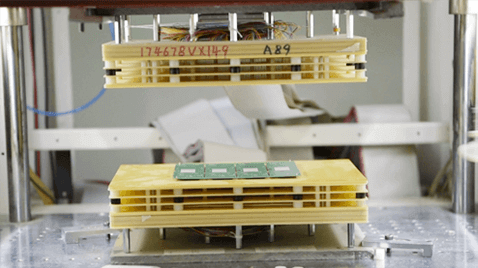

Flying probe test and fixture test are typically performed at this stage

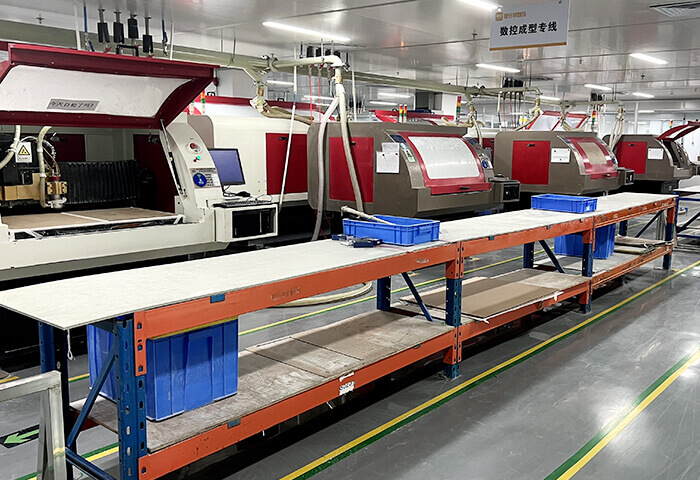

Routing
09

9-Routing

Now the boards will go through the routing process twice, and the second time is the fine routing.

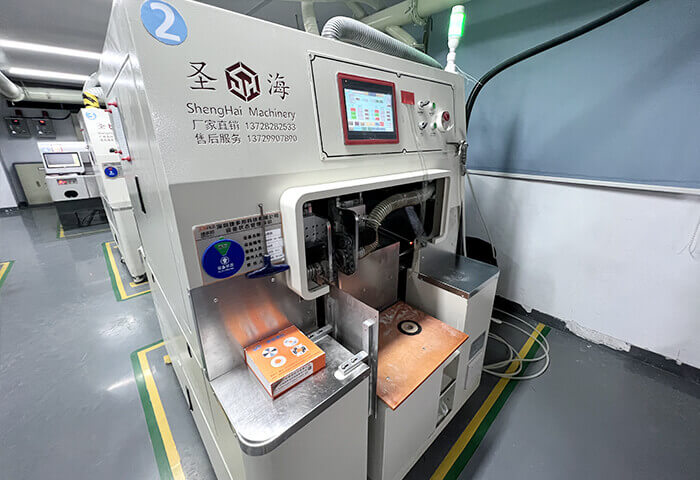

V-CUT
10

10-V-CUT

First sample inspection is needed after going through V-cut process.

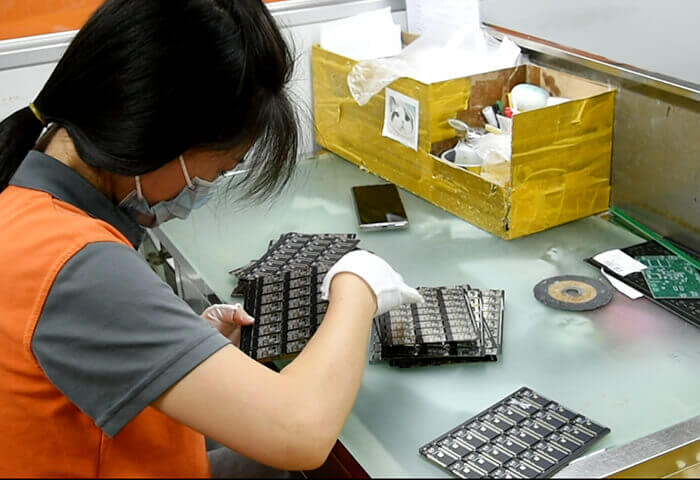

FQC
11

11-FQC

After the FQC inspection, there are also FQA random inspections, solder mask 3M adhesion tests, slicing test, and solderability test.

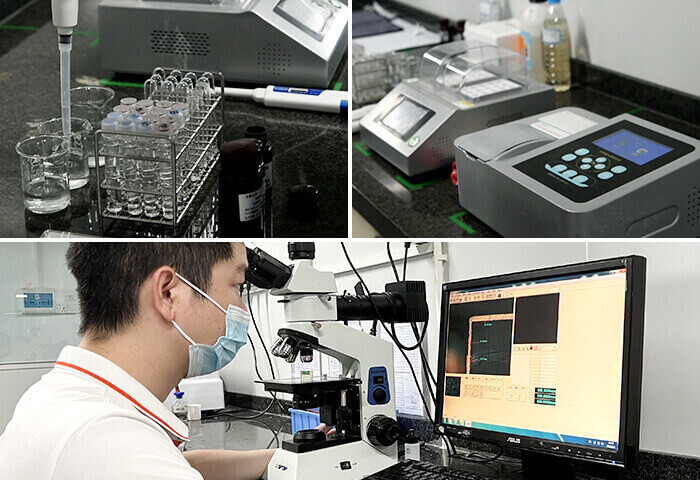

Physical Lab
12

12-Physical Lab

The role of the physical laboratory is to use some devices to make quality tests on the boards of related processes. Commonly used tests include: metallographic microscope, X-ray inspection of inner layer, X-ray test of gold thickness, impedance tester, peel strength tester, coil resistance test, quadratic element, copper thickness tester, solderability test, backlight test, particle contamination test, soldermask 3M adhesion test, copper thickness test,etc.

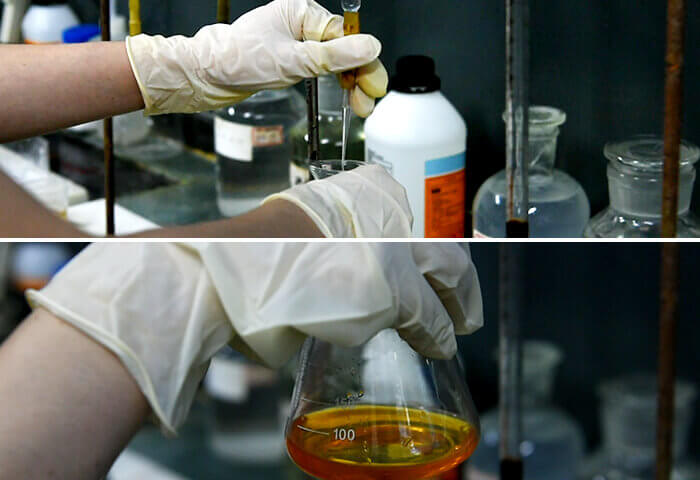

Chemistry Lab
13

13-Chemistry Lab

The chemical laboratory generally checks the correct ratio of chemical ingredients to ensure the quality of the boards. Usually, some processes that need to use potions are inspected, including: copper plating, electroplating, solder mask, etching, developing, lamination of brown lines, surface treatment, etc.

5. Strict Management

Our quality control systems are regularly audited and assessed to ensure their compliance and effectiveness. A complete quality control system and 100% PCB testing procedures will ensure that every order you entrust is completed perfectly.

PCBWay has dozens of SMT production lines. Advanced production equipment, strict quality control and intelligent service system to ensure the standardization and best quality of each production process.

Smart management system & Advanced production and testing equipment

AOI Machine Before the Furnace
AOI Machine Before the Furnace

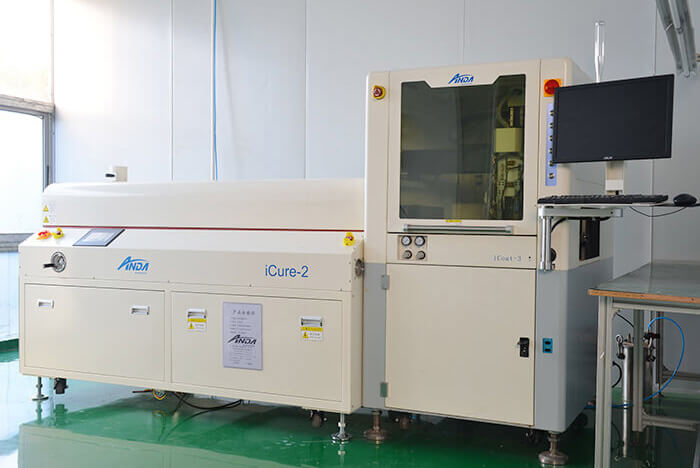

Conformal Coating Equipment
Conformal Coating Equipment
Depaneling Machine
Depaneling Machine

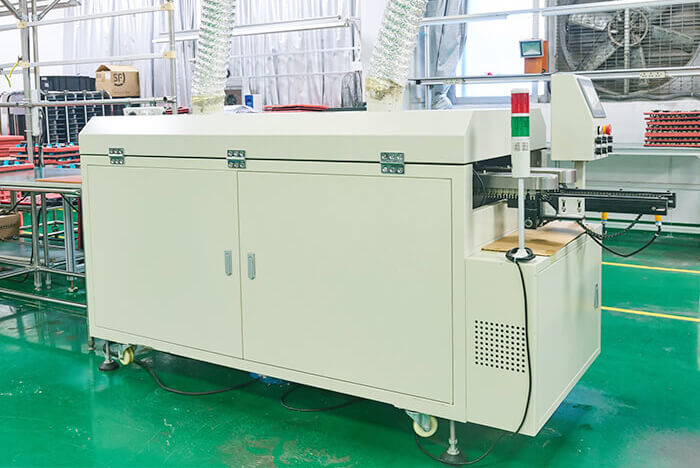

Microplate Washer
Microplate Washer

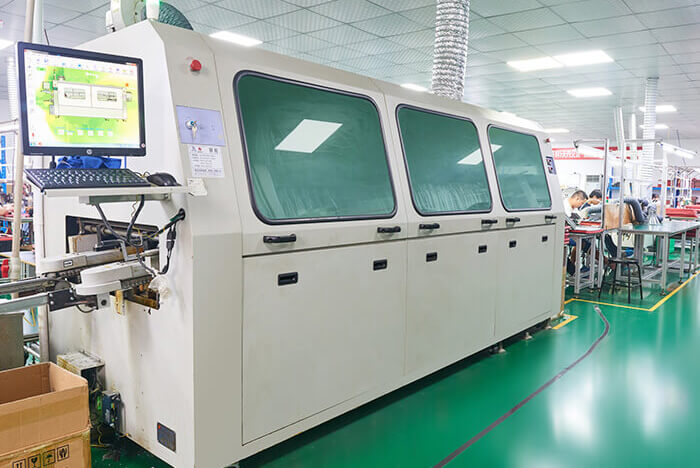

Wave Soldering
Wave Soldering

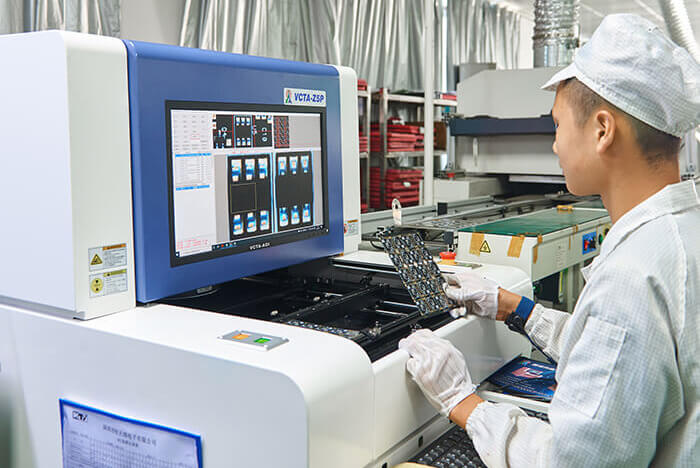

AOI
AOI

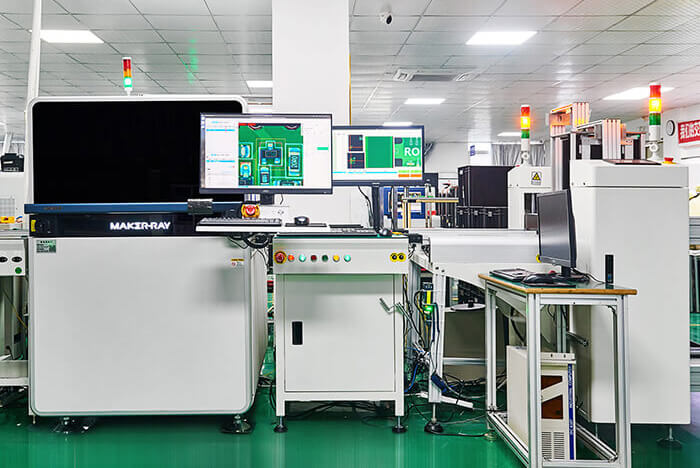

On-line AOI
On-line AOI

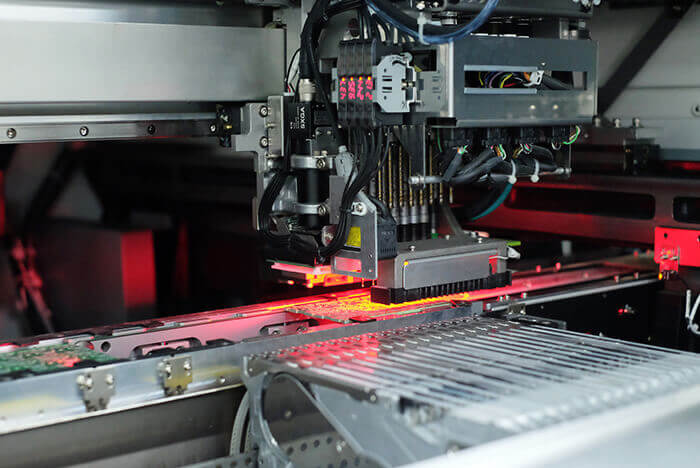

SMT Placement Machine
SMT Placement Machine

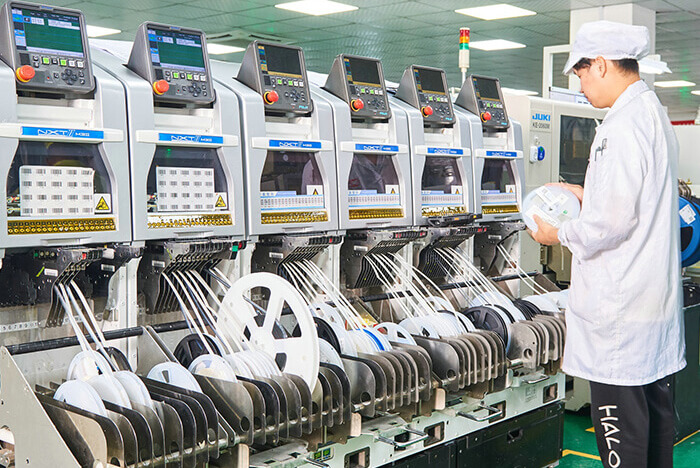

High Speed Pick and Place Machine
High Speed Pick and Place Machine

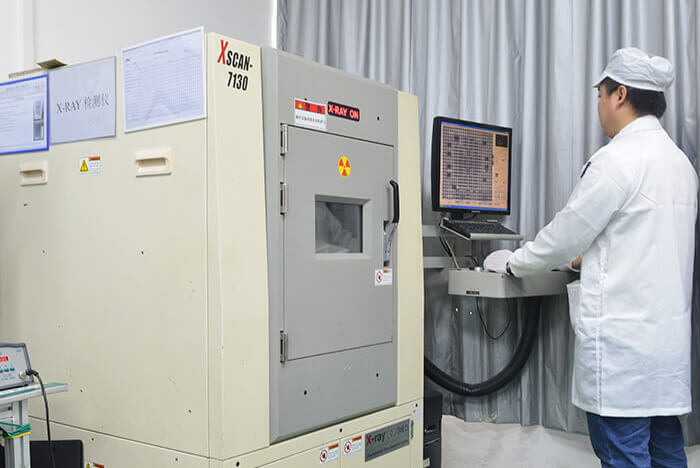

X-Ray
X-Ray

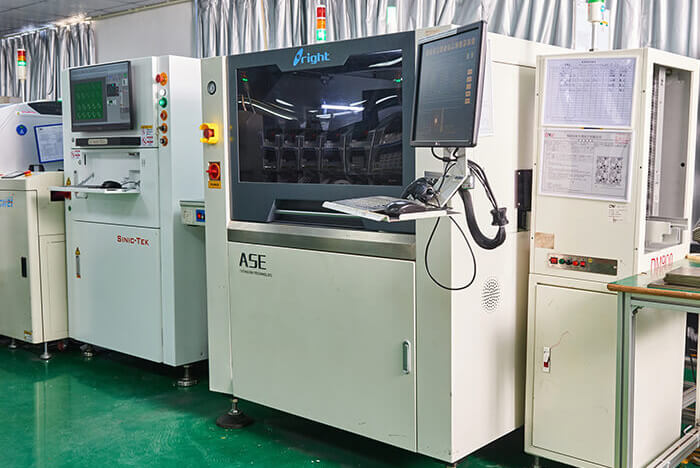

SPI Solder Paste
SPI Solder Paste
SPI
SPI

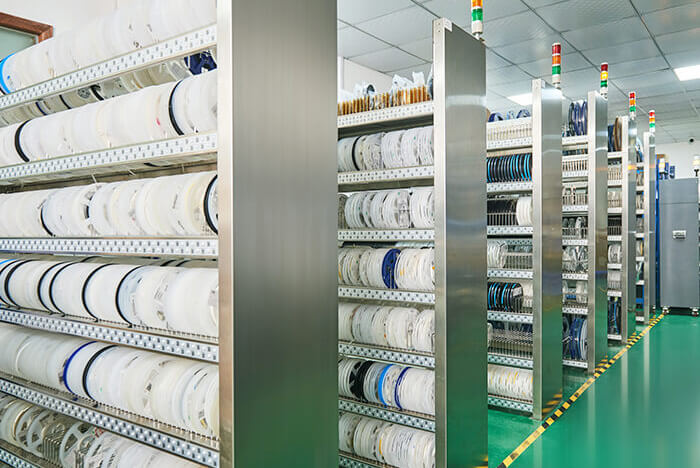

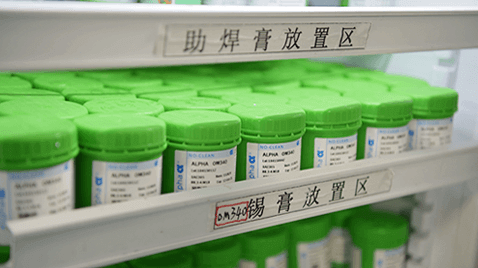

Smart Warehousing
Smart Warehousing

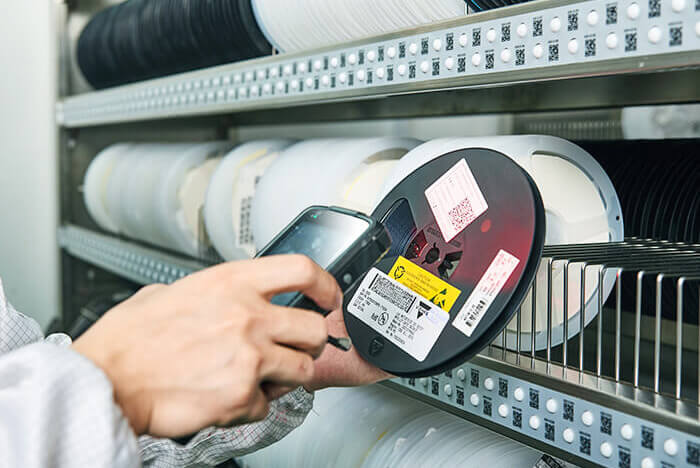

Barcodes vs Qr Codes for Inventory Management
Barcodes vs Qr Codes for Inventory Management

Quality checking process and description

Production process and description
Production process and description
Process review
01-Process review

Assess and inspect the particularity of the PCBA manufacturing process in advance, guide the production, and improve the quality from the process technology.

IQC Incoming Quality Control
02-IQC Incoming Quality Control

● Check whether the resistance and capacitance values are correct
● Check whether the pads on the components and the board are consistent
● Confirm whether the incoming quantity is accurate
● Check whether the components are abnormal

SPI Solder Paste Inspection
03-SPI Solder Paste Inspection

SPI can detect whether the solder paste is sufficient and uniform, which can effectively prevent production quality problems in advance caused by poor solder paste printing.

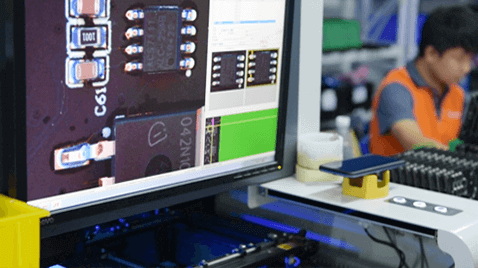

Online AOI Inspection
04-Online AOI Inspection

The AOI can detect the wrong solder, reverse solder, false solder, empty solder, incomplete solder, short circuit, offset, tombstone, etc. after reflow soldering. And it can also detect excessive solder, less solder, continuous solder and other undesirable phenomena in the appearance of PCBA solder joints.

First sample test
05-First sample test

Combined with Gerber, BOM and coordinate files, the resistance and capacitance in the completed PCBA are verified again by the first-sample tester to ensure the correctness of all parameter values.

Off-line AOI inspection
06-Off-line AOI inspection

According to the IPC610D standard, inspect the soldered surface mount PCBA for errors, omissions, and false connections.

X-Ray welding inspection
07-X-Ray welding inspection

Inspect the solder joints of invisible components to ensure the reliability of each solder ball of the BGA.

QC manual inspection
08-QC manual inspection

Refers to the standard IPC--610 inspection standard, and the finished board is visually inspected to ensure 100 % Good products shipped.

1. Pre-production Document Check

Before the production, our engineering team conducts a technical evaluation of your part design. This includes an assessment of important factors such as 3D and 2D drawings, material, surface finish, structure, workmanship and etc. When the engineer finds that there is a problem with the file or there is something that can be optimized, communicate with the customer in time to eliminate the problem before processing.

2. Raw Material Guarantee

PCBWay strictly controls material and surface treatment suppliers, using high-quality materials to produce parts. Upon customer request, we provide certification of the materials used to manufacture your parts. Reports come from raw material manufacturers and usually include: material model number, material grades, material dimensions, mechanical properties, chemical analysis, etc.

Click to view raw materials

3. The World's Leading Production Equipment

To guarantee our strict quality control, we have the highest specification production workshop and the most advanced equipment, including but not limited to the following:

● Mazak 3-axis,4-axis,5-axis CNC Machining Center
● Mazak Turn-milling Complex Machine
● Sodick EDM Equipment
● Amada Pega NCT Punch Machine
● Mitsubishi Laser Cutting Machine
● Amada Press Brake Machine

4. In-process Quality Control

We strictly comply with ISO9001:2015 requirements. The parts will be processed in strict accordance with the established technological process. After the FAI report is passed, the mass production can be carried out. There is IPQC in the production process to ensure that every process is correct.

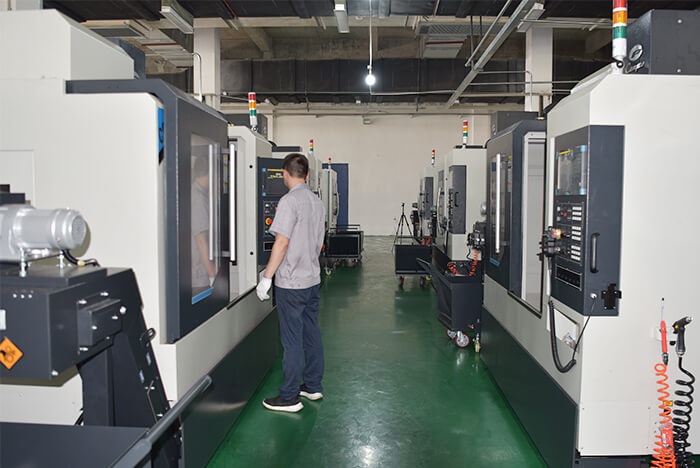

CNC Machining Center
CNC Machining Center
Turn-milling complex machine
Turn-milling complex machine

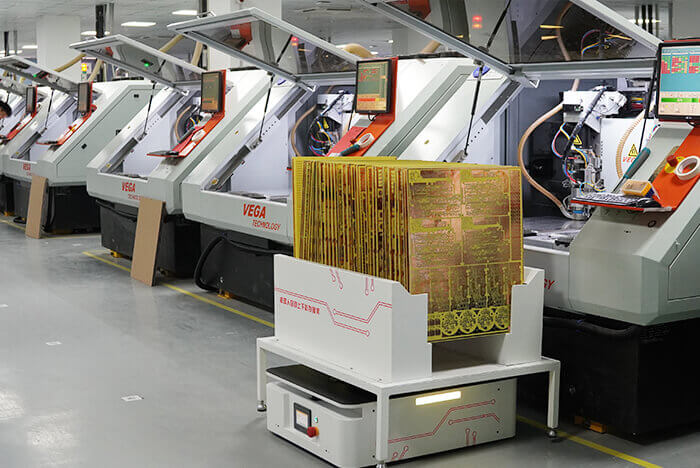

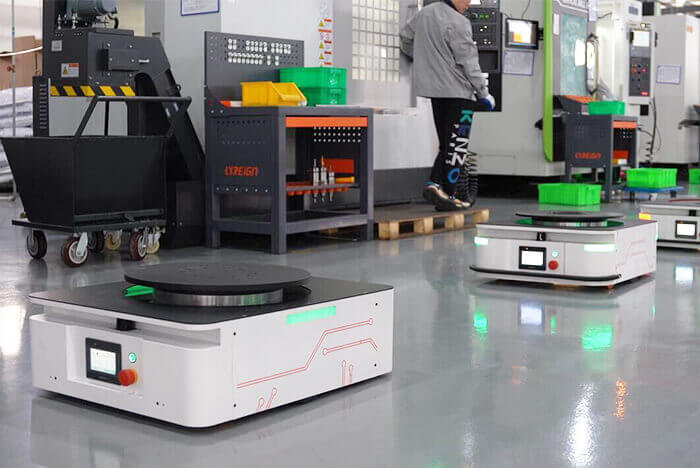

Carrier Robot
Carrier Robot
Carrier Robot
Carrier Robot

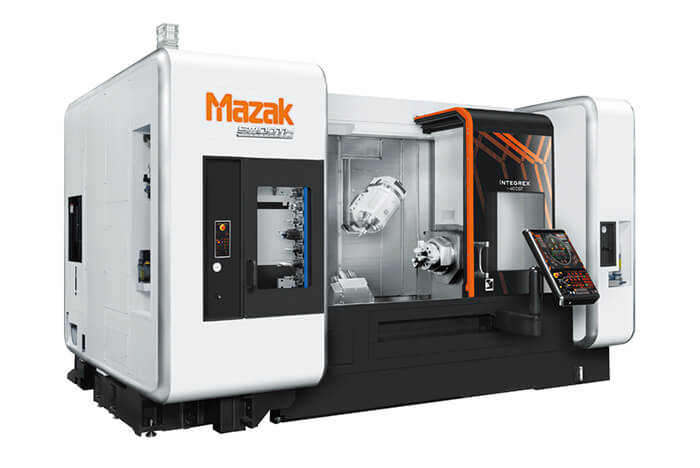

Mazak 3-axis,4-axis,5-axis CNC Machining Center
Mazak 3-axis,4-axis,5-axis CNC Machining Center

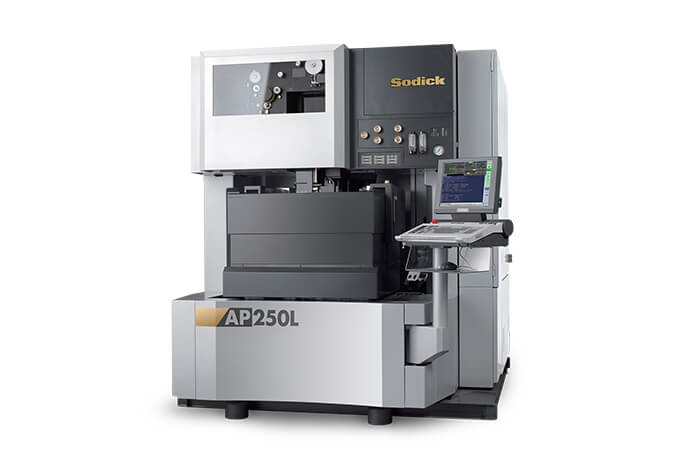

Sodick EDM Equipment
Sodick EDM Equipment

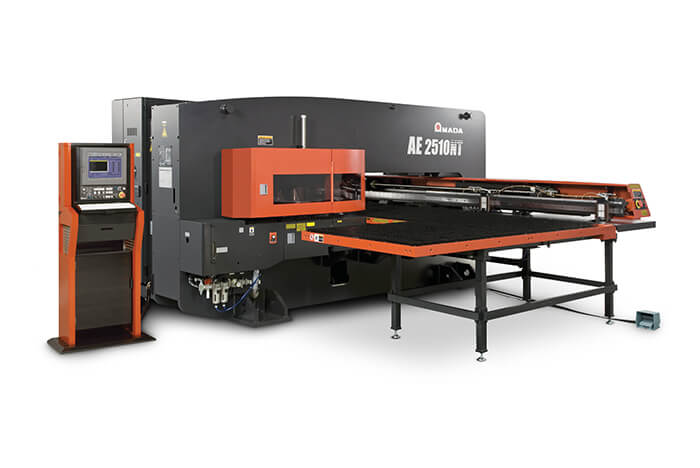

Amada Pega NCT Punch Machine
Amada Pega NCT Punch Machine

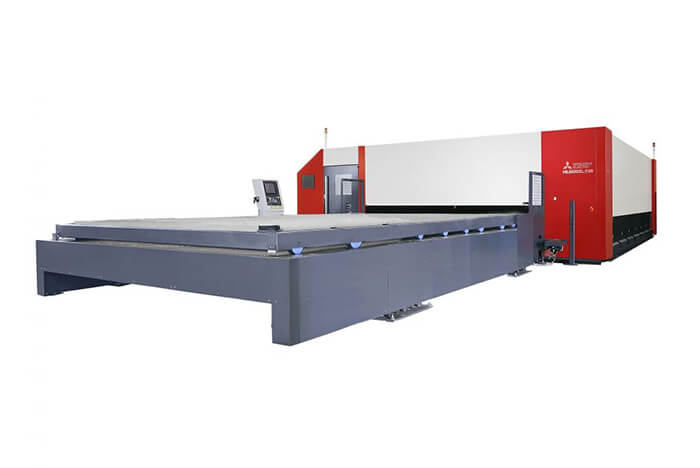

Mitsubishi Laser Cutting Machine
Mitsubishi Laser Cutting Machine

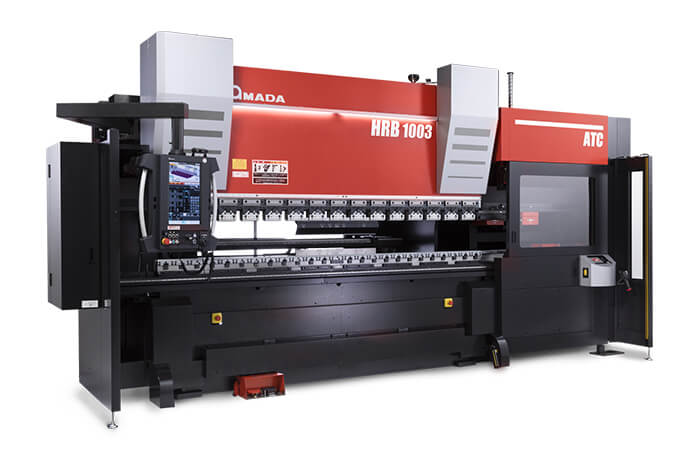

Amada Press Brake Machine
Amada Press Brake Machine

5. Quality Inspection Before Shipment

We have a dedicated QC team that 100% inspects finished parts before delivery, ensuring the parts we manufacture are of the highest quality. For all orders, we provide inspection reports upon request. The report will include the following: Number of parts, critical dimensions, threads and tolerances, thickness and depth, part appearance, and more.

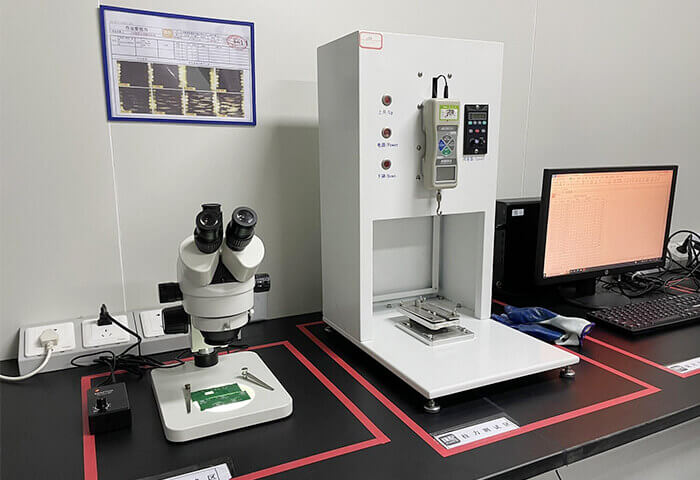

Tensile Tester
01

Tensile Tester

It is used to find out how strong a material is and also how much it can be stretched before it breaks.

Zeiss Coordinate Measuring Machine
02

Zeiss Coordinate Measuring Machine

CMM refers to an instrument that can calculate various geometric shapes, dimensions and other measurement capabilities through the three-coordinate software system according to the point data returned by the probe system within the three-dimensional measurable space.

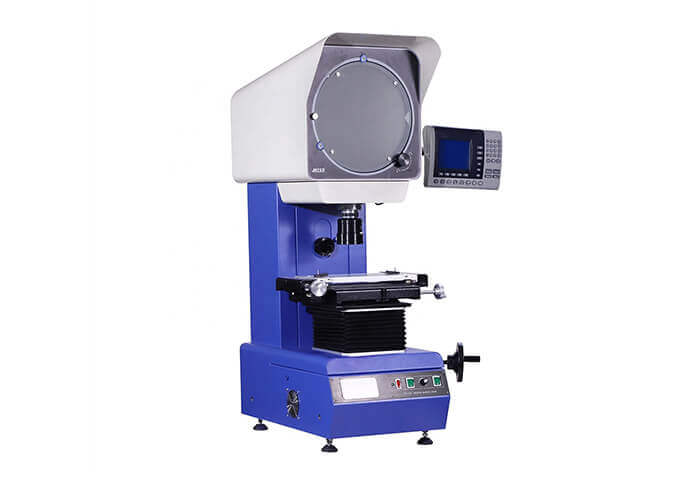

Mitutoyo Profile Projecto
03

Mitutoyo Profile Projecto

Profile projector is an instrument that uses the optical principle to enlarge the contour or surface shape of the workpiece by an objective lens and a reflector, and then project it onto a projection screen, and use a counter or various standard pictures to inspect and measure the length, angle, shape, surface, etc.

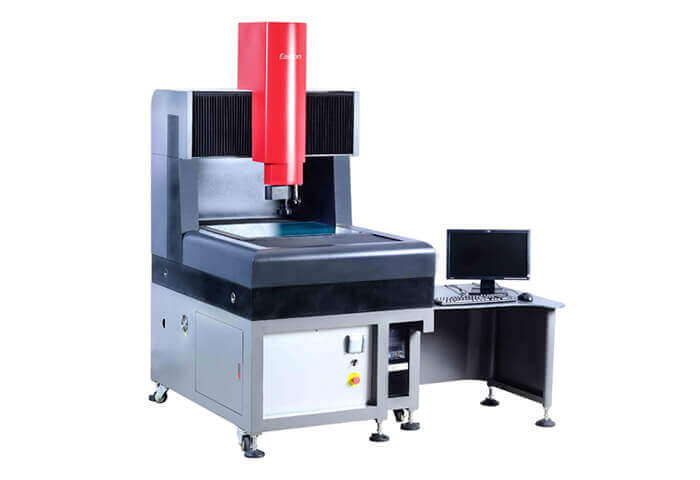

Easson 2.5-Dimensional Image Measuring Instrument
04

Easson 2.5-Dimensional Image Measuring Instrument

2.5-dimensional image measuring instrument is a measuring instrument composed of mechanical main body, ruler system, image detection system, drive control system and measurement software.

3D scanners
05

3D scanners

3D scanner is a scientific instrument used to detect and analyze the shape (geometric structure) and appearance data (such as color, surface albedo, etc.) of objects or environments in the real world.

XRF material verification gun
06

XRF material verification gun

XRF material verification gun is a fast, non-destructive method for measuring substances.

6. Strict Management

Our quality control systems are regularly audited and assessed to ensure their compliance and effectiveness. A complete quality control system and the most stringent testing methods will ensure that we provide you with quality parts that meet your requirements.

Quality Reports

To ensure that all orders are completed in accordance with the PCBWay Manufacturing Standards.
We can provide a complete quality inspection reports according to your requirements, including but not limited to:

Standard Inspection
This document certifies that the order has been delivered with the required order specifications. PCBWay will do the dimension and surface feature inspections based on the drawings provided by the customer. Test PCB for open circuit or short circuit.
Availability:
pcb,pcb assembly,CNC machining,3D printing,EMS,OEM etc.
Free of charge
REACH
This document certifies that the material of a product manufactured does not contain more than 0.1% of the hazardous substances listed in the European reach regulation (SVHC).
Availability:
pcb,pcb assembly,CNC machining,3D printing,EMS,OEM etc.
Additional cost
Full Dimensional Report
Provides dimensional reports to verify critical dimensions of product parts, and allowable range tolerance data for comparison.
Availability:
CNC machining,Injection molding,PCB
Free of charge
Default Inspection Report
Regular shipment report additionally includes test report, dimensional inspection report
Availability:
Advanced PCB,PCB
Free of charge
Thermal Stress Test Report
The purpose and requirements of thermal stress test PCB is used as the carrier of components, and its reliability has an important impact on the overall performance of electronic products.
Availability:
PCB
Free of charge
Humidity indicator cards
Apply to display the humidity status of the sealed space.
Availability:
pcb,pcb assembly(SMT)
Free of charge
Microsection Inspection Report
Micro-sections made by micro-sectioning technology of printed circuit boards can be used to inspect the thickness of wires inside the PCB, the number of layers, the size of through-holes, and the quality of through-holes. Wet quality evaluation, etc.
Availability:
PCB
Free of charge
Impedance Test Report
PCB Impedance Test
Availability:
PCB
Free of charge
Coordinate measuring machines (CMM)
PCBWay offers inspection with coordinate measuring machine (CMM) or laser scanners for an unlimited number of features.
Availability:
CNC
Additional cost

// PCBWay Quality Inspection Report //

2023 Test Report
2021 Test Report
Quality Certifications
PCBWay's quality management system is to ensure with efficient printed circuit boards which meet customer’s requirements. Our partners manufacture in compliance with, among others, the following standards:
IATF 16949
ISO 9001:2015
ISO 13485:2016
REACH
CE
RoHS
UL
See more certificate >>

Thanks to the materials used and advanced technology, we always ensure highest quality of our printed circuit boards!
PCBWay can provide customers with certifications in various markets, such as: EU RoHS certification, EU CE certification, US UL certification, US FCC certification, Australia SAA certification, Australia C-tick certification, Australia RCM certification, Japan PSE certification, Brazil INMETRO certification, Mexico NOM certification, Canadian IC certification, Korea lithium battery KC certification, Argentina IRAM S-mark certification, DLC certification, GS certification, CB certification, etc.

PCBWay can provide customers with certifications in various markets,

Resolving Quality Issues

If your order does not meet specifications, you will enjoy our rework or refund policy.
You can issue any complaint within 5 working days after receiving the products. Our after-sales service team will resolve these issues as soon as possible, usually within 1-3 working days. We promise that if quality problems are caused by fabrication, PCBWay will be responsible for free maintenance or rework, and bear the return shipping costs.

Unacceptable processing defects
Fail to meet tolerance requirement
Incorrect material / finish
The part is not machinable
Product not available
Other reasons

Raw Material Download

We use the following raw materials in our production.
The following 60+ product specifications are available for download:

Recognition & Awards

The quality and service of PCBWay have been trusted by many customers, platforms and well-known bloggers,
and have reached a long-term cooperative relationship with them. Discover our customers' testimonials.

Siemens
Samsung
Midea
Kutluhan Aktar
Takao Ikeda
SnapEDA
MagPi Magazine
Pierre

We wanted to thank PCBWay for the quality of our exchanges and for the trust they place in Siemens. PCBWay becomes one of our partner for our new project development. Our new strategy project allows us to make a big step toward large scale IOT solutions and this could not be done without the support of PCBWay. This is a mutual commitment and we believe in PCBWay to advise us, guide us and share knowledge in order to create a true collaborative partnership.

Siemens
Purchasing manager

PCBWay and Samsung have collaborated for several years in the design and manufacturing of PCB(s). PCBWay's expertise in technology development and manufacturing complements Samsung's 20-year experience in the development, sales, marketing and Cusomer Service in PCB projects, continuously strengthening their leading position in the international markets.

Samsung
Purchasing & Logistics Specialist

PCBWay have been a very good supplier to Midea for PCB(s). They are extremely competitive in pricing with on time delivery. We have great support from their customer service personnel, very fast with responses and able to assist in almost every occasion.

Midea
Purchasing manager

I am fond of creating visually challenging, out-of-the-ordinary, and unique PCB designs for my projects. Over the years, PCBWay has never ceased to amaze me with its high-quality service, advanced manufacturing options, and acceptance of creativity.

Kutluhan Aktar
Blogger/Maker

PCB Way and Ipesi Magazine maintain the partnership for a few years, with an excellent relationship. The technical capacity and service they offer to partners are at the highest level. Without a doubt, we recommend it to the market.

Takao Ikeda
Ipesi Magazine

Hundreds of SnapEDA's users rely on PCBWay each month to manufacture their boards because of their high-quality services. Their speed and reasonable cost make them a preferred choice among our community - SnapEDA

Dayana Cómbita
Associate Project Manager

Makers in the Raspberry Pi community are increasingly inclined to
use PCBWay to complete their ideas.

MagPi Magazine

We have been working with PCBWay for over a year and love the relationship.
Their team is very professional, responsive and friendly.

Pierre
Co-founder of Cults3d
Servo Magazine
Servo Magazine
Elektor Magazine
Elektor Magazine
Ipesi Digital
Ipesi Digital
Circuit Cellar
Circuit Cellar
Elettronica Open Source
Elettronica Open Source
Nuts & Volts Magazine
Nuts & Volts Magazine
