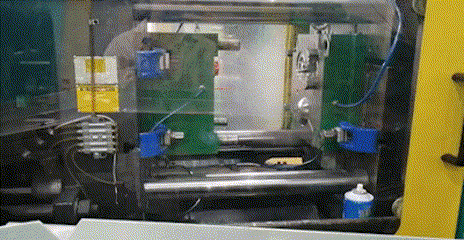

Overview: How Injection molding works?

The Basics Of Injection Molding Service

Injection molding is one of the most often-used manufacturing processes for creating plastic parts. Thanks to its high-precision, repeatability, and cost efficiency at scale, injection molding is used to make a variety of products and parts from the smallest medical insert up to large automotive & aerospace and defense parts. The injection molding process requires an injection molding machine, raw plastic material, and a machined mold. The raw plastic material is first melted in the injection unit and is then injected into the mold — most often machined from steel or aluminum — where it cools and solidifies into the final plastic part. The key steps in the injection molding process are clamping, injection, cooling, and ejection.

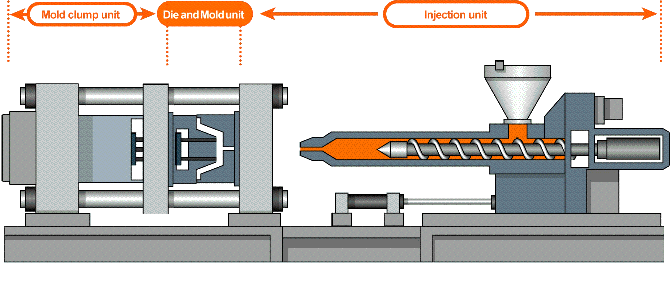

How Injection molding Works

The sequence of events during the injection mould of a plastic part is called the injection molding cycle. The key steps in the injection molding cycle are:
Clamping: The two sides of the mold are closed and clamped shut.
Injection: The material is fed into the machine and pushed towards the mold. While this is happening, the material is melted by heat and pressure. The plastic is then injected into the mold — this is called the “shot.”
Cooling: The plastic in the mold cools and solidifies into the shape of the part.
Ejection: After the part cools, it is ejected from the mold.

Injection Molding Cycle
Injection Molding Cycle

Features of Injection Molding Service

Advantages

100+ materials

We offer many available injection molding material, also customizable

Accuracy & Efficiency

All sheet metal parts are built on-demand and with lower setup costs compared to CNC Machining. Depending on your needs, order as little as a single prototype up to 10,000 production parts.

Scalability

Molding can be the ideal process for custom production runs of 1-500,000+ parts.

Stable & Durable

Injeciont mold produces real end products that has awesome durability.

Rapid Turnaround

With rapid molding, molds ready in 15 days, parts shipped in 1 to 15 days

Surface Quality

Injection molds are precisely CNC milled and polished, which gives the parts terrific surface, customizable treatments are also available.

Drawbacks

Structure Limits

Interlocking and hollowed structure is difficult to be produces in one pieces with Injection Molding.

Startup Cost

For small batch production, the starting cost is not as affordable as CNC milling or 3D Printing.

Injection Molding Materials

Rigid And Flexible Plastic Varieties,Rubber-Like Varieties

Hard Plastics

ABS | Acrylonitrile Butadiene Styrene
ASA | Acrylonitrile Styrene Acrylate
CA | Cellulose Acetate
COPO | Copolyester
PCT | Polycyclohexylenedimethylene Terephthalate
PPA | Polyphthalamide
HDPE | High-Density Polyethylene
PEEK
Polypropylene (PP)
Polycarbonate (PC)
PMMA | Polymethyl Methacrylate, Acrylic
Nylon 12(PA12)
Nylon 6/66(PA6/66)
Derlin (POM)
Teflon (PTFE)
PBT
PLA | Polylactic Acid
High-Density Polyethylene (HDPE)
PVC
PPS | Polyphenylene Sulfide, Ryton
Vespel (PI)
Torlon 4203 (PAI)
UPE/UHMW
PVDF
ULTEM (PEI)

Flexible Plastics

Polyethylene (PE)
Polystyrene (PS)
PET
EVA Foam
EPS Foam
PU Foam

Rubber-Like Varieties

TPE | Thermoplastic Elastomer, Santoprene
TPU | Thermoplastic Polyurethane (Shore A)
LSR | Liquid Silicone Rubber
LSR | Liquid Silicone Rubber
PVC | Polyvinyl Chloride (Shore A)
POE | Polyolefin Elastomer
MPR | Melt Processable Rubber
EPDM | Ethylene Propylene Diene Monomer Rubber, Viton

Mixed plastic

PC-ABS | Polycarbonate-Acrylonitrile Butadiene Styrene
PC-PBT | Polycarbonate-Polybutylene Terephthalate
PC-PET | Polycarbonate-Polyethylene Terephthalate
PS-PPE | Polystyrene-Polyphenyl Ethers
PE-PS | Polyethylene-Polystyrene
PE-PP | Polyethylene-Polypropylene
PBT-PET | Polybutylene Terephthalate-Polyethylene Terephthalate
PBT-PET | Polybutylene Terephthalate-Polyethylene Terephthalate
