Automotive

Revolutionizing the Automotive Industry with 3D Printing

Get intant quote

Unleash Your Product Potential with PCBWay

3D Printing Solutions for All Your Needs at PCBWAY

Whether you're developing a new product or validating a new concept, PCBWay's prototyping services can help

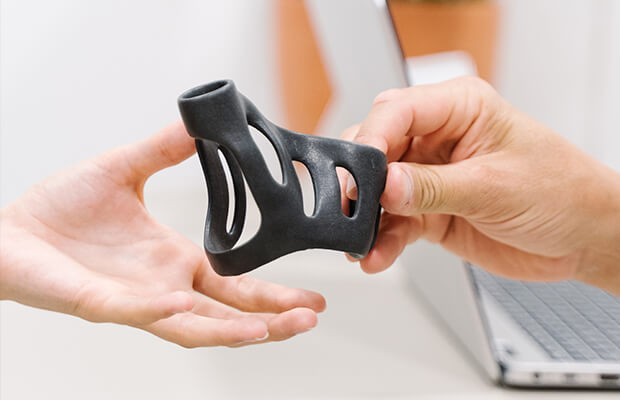

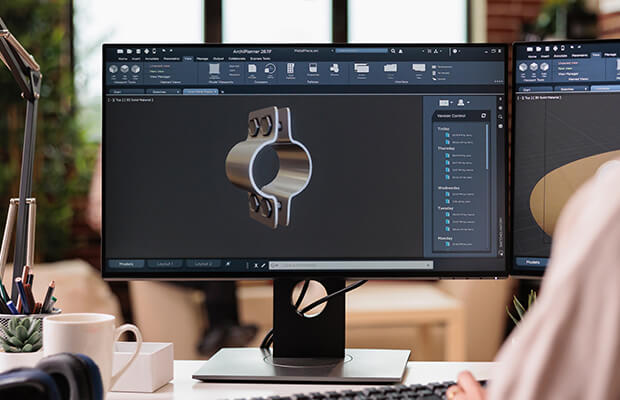

Prototypes and Testing

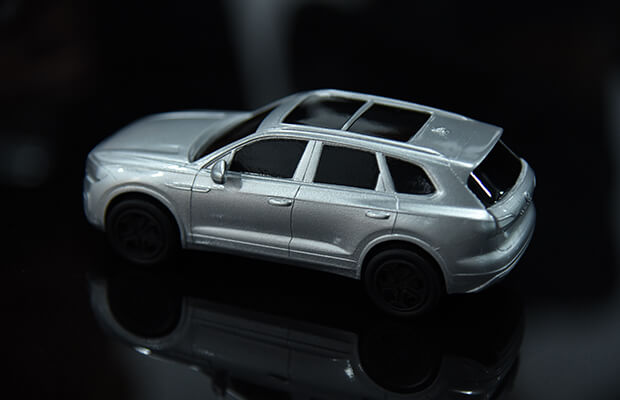

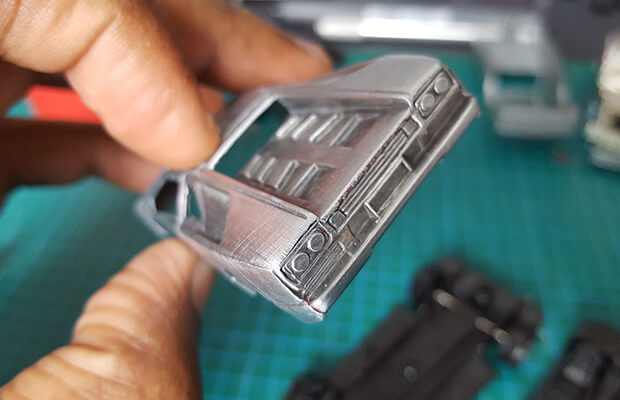

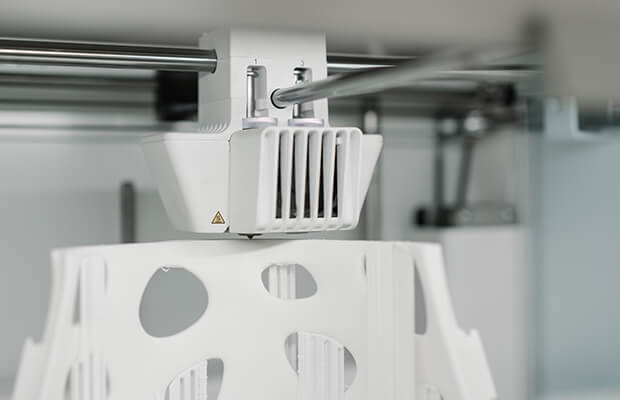

Conceptual Designs

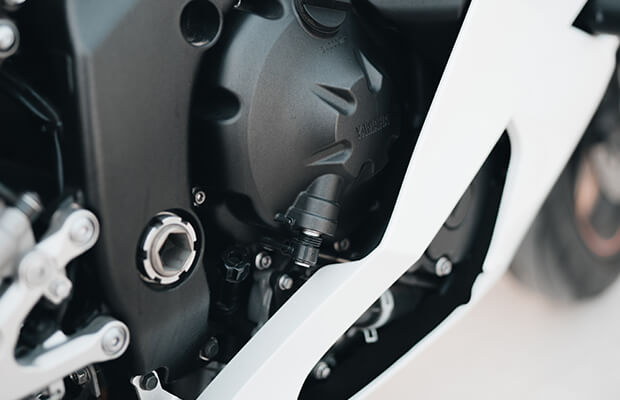

Parts customization

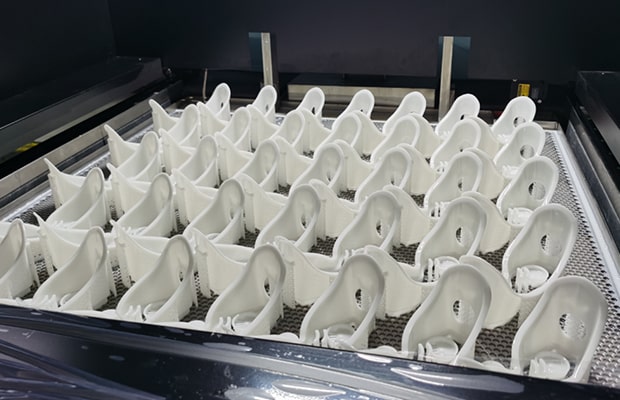

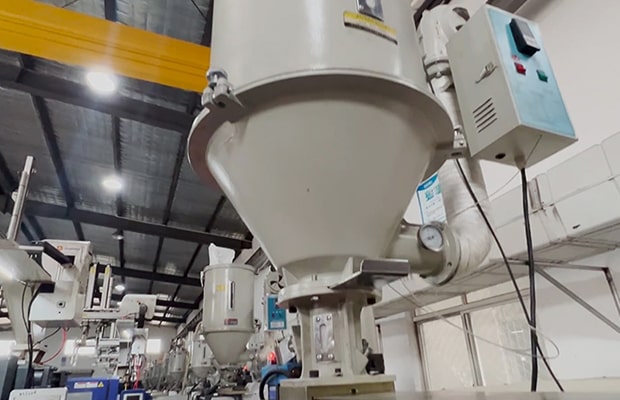

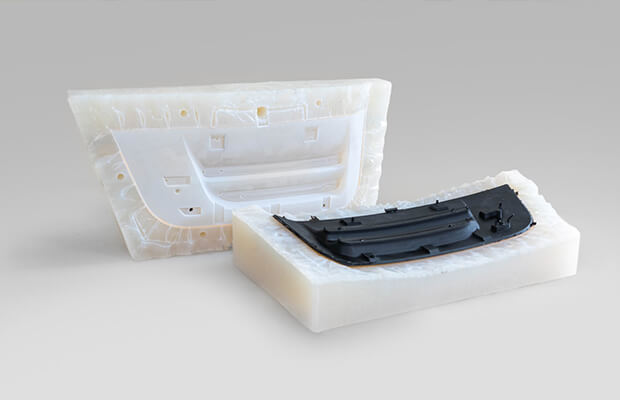

Mass Production

Design verification and analysis
Complete design iterations in a short time and accelerate product development
Design repeatability and optimization
Conduct more tests in a short period of time to identify potential problems
Structure/assembly and functional verification
Verification of prototypes can be faster and more accurate
Rapidly develop design iterations
Reduce time and cost investment, manufacturing is more in line with consumer needs
PCBWay Brings Precision and Professionalism to Your Manufacturing

We deliver the technology, engineering and product manufacturing expertise that helps your products get to market more quickly and efficiently.

Watch Video
Get a Quote Now

Core Advantages Support Manufacturing

Flexible solutions and advanced production capabilities allow you to easily manufacture and deliver prototypes

High flexibility in production

Three-dimensional solids of any complex shape can be manufactured. If you want to produce part models of different shapes, you only need to adjust the model file, readjust and set the parameters.

Get Intant Quote

Highly integrated design and manufacturing

The production process of 3D printing is directly driven by the three-dimensional model, realizing the seamless connection from the model to the actual object, and truly realizing the integration of design and manufacturing. It is a typical embodiment of digital design and manufacturing technology.

Get Intant Quote

Production constancy

The cost of a product has almost nothing to do with the batch size, complexity of the product, and production cycle.

Get Intant Quote

Highly automated

The process is fully automatic without manual intervention, and can basically achieve unattended production.

Get Intant Quote

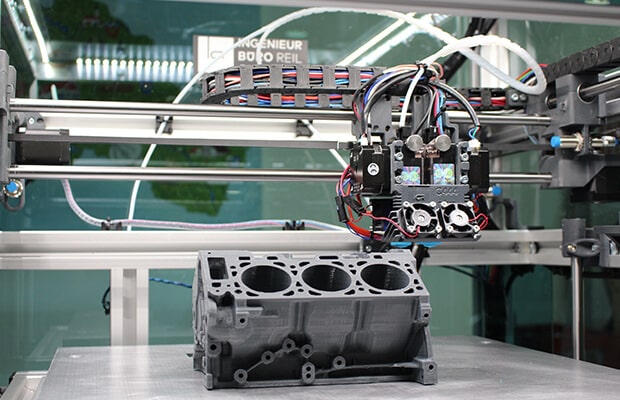

Application of 3D printing in the Automotive Industry

Material Performance Parameters for the Automotive Industry

We have 30+ 3D printing special materials for you to choose from

Material UTR8220 Somos ® Ledo Somos ® Taurus UTR8100 PA12 PA12+35% GF Stainless steel 316L AlSi10Mg
Color Yellow-green White Gray-black Colorless and transparent White/black Off-white Stainless steel color Aluminum alloy gold
Performance High toughness, suitable for model parts in the automotive industry High toughness and strength, suitable for automotive verification and automotive modification parts Automotive functional original auto parts Transparent material car lamp trial production and visual model production HP nylon materials, nylon 12 materials, automotive tooling fixtures Nylon fiberglass material, high temperature resistance, high strength parts stainless steel material Aluminum alloy material
Heat Distortion Temperature 58℃ 58℃ 90℃ 46℃ 146.2℃ 152.4℃ N/A N/A
Tensile Strength 51.2MPa 52.3MPa 49MPa 42-50MPa 46MPa 44MPa 600MPa 300MPa
Tensile Modulus 2136MPa 2600MPa 22065MPa - 1206MPa 2644MPa N/A N/A
Elongation at Break 16% 11% 17% 4-9% 36% 9.3% 30% 8%
Bending Strength 93.5MPa N/A 62.7MPa 80-90MPa 46.3MPa 60.3MPa 400 yield strength 180 yield strength
Flexural Modulus 2355MPa N/A 1724MPa 2300-2600MPa 1300MPa 2210MPa N/A N/A
Shore Hardness 86D N/A 83D 82D N/A N/A 28HRC 120HBW
Print Layer Thickness 0.1mm 0.1mm 0.1mm 0.1mm N/A N/A N/A N/A
Maximum Molding Range Performance Somos ® Ledo Somos ® Taurus UTR8100 PA12 PA12+35% GF Stainless steel 316L AlSi10Mg

Common Automotive Surface Treatments

At PCBWay, we offer a variety of common surface treatments that help improve functionality and aesthetics.

Spray painting High gloss paint
Spray painting - High gloss paint

Spray painting: Using spray guns with air pressure to disperse into uniform and fine droplets and apply the painting to the surface of the object. Application: generally used in the appearance of smart hardware, home appliances, and plastic parts.

Learn More
Spray painting Matt paint
Spray painting - Matt paint

Spray painting: Using spray guns with air pressure to disperse into uniform and fine droplets and apply the painting to the surface of the object. Application: generally used in the appearance of smart hardware, home appliances, and plastic parts.

Learn More
Vacuum plating High gloss paint
Vacuum plating - High gloss paint

Vacuum plating mainly includes vacuum evaporation, sputtering and ion plating. They are all used to deposit various metal and non-metal films on the surface of plastic parts through distillation or sputtering under vacuum conditions. It can get very thin surface coating. Detail sanding would proceed for these parts in order to achieve the best surface effect after plating.Features: fast speed and good adhesion.
Application: functional coatings for higher-end products, household appliances, and cosmetic packaging.

Learn More
Vacuum plating Matt paint
Vacuum plating - Matt paint

Vacuum plating mainly includes vacuum evaporation, sputtering and ion plating. They are all used to deposit various metal and non-metal films on the surface of plastic parts through distillation or sputtering under vacuum conditions. It can get very thin surface coating. Detail sanding would proceed for these parts in order to achieve the best surface effect after plating.Features: fast speed and good adhesion.
Application: functional coatings for higher-end products, household appliances, and cosmetic packaging.

Learn More
1000 sanding
#1000 sanding

Sanding is the use of fine abrasive sand particles to rub the surface of the product to produce a diffuse, non-linear texture effect. Adhere different abrasive grit to the backing paper or the back of the board, and the abrasive grit can be distinguished by different granularities according to the size: the higher the particle size, the finer the abrasive grit, so the surface effect is better.

Learn More
Dyeing
Dyeing

Dyeing is done in a special solution containing dyes and particular chemical material. Dye molecules are fixed to the fiber by absorption, diffusion, or bonding with temperature and time being key controlling factors. Usually the result of dyeing will have a certain color difference.

Learn More
Silkscreen
Silkscreen

Silkscreen generally refers to screen printing, which is the process of pressing ink through a stencilled mesh screen to create a printed design, graphics and text.
Kindly note that silkscreens can be made only on flat surfaces. ONLY Ai and svg formats are acceptable and meanwhile mark the dimension and placement on the 2D technical drawings.

Learn More
Laser engraving
Laser engraving

Laser engraving is the use of laser technology to engrave text and pattern on objects. The characters engraved by this technology have no nicks, the surface of the object is smooth, and the text and pattern will not wear out.
Kindly note that laser engraving can be made only on flat surfaces. ONLY Ai and svg formats are acceptable and meanwhile mark the dimension and placement on the 2D technical drawings.

Learn More

Custom Parts for Automotive Industry

We are committed to manufacturing parts that meet industry performance and safety standards, whether
prototyping or low-volume production

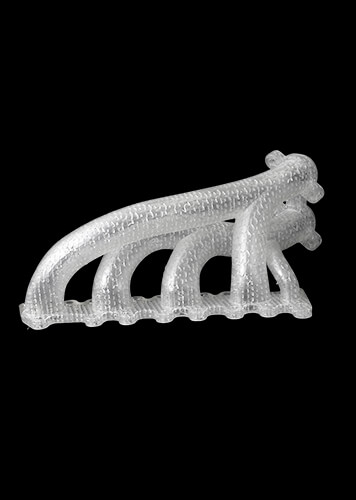

Automotive Accessories 1a
Resin UTR8100

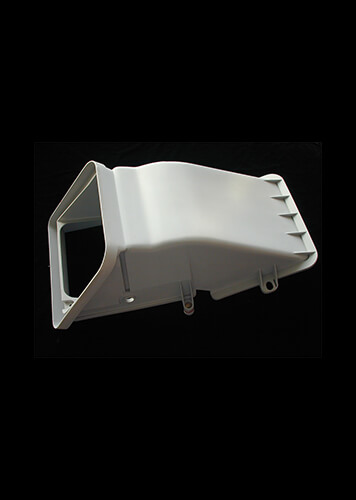

Automotive Accessories 1b
Nylon PA12

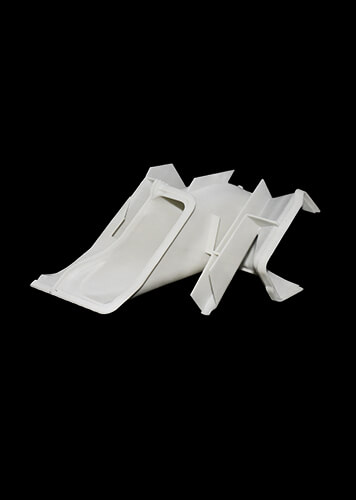

Automotive Accessories 1d
Nylon PA12

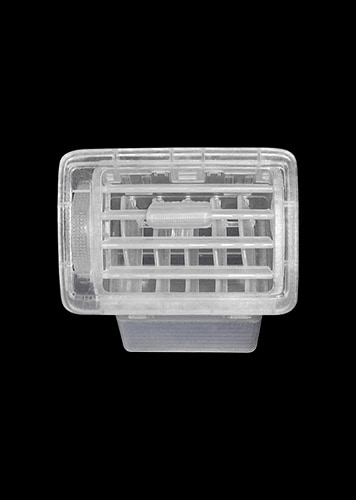

Automotive-Air-conditioning
Resin UTR8100

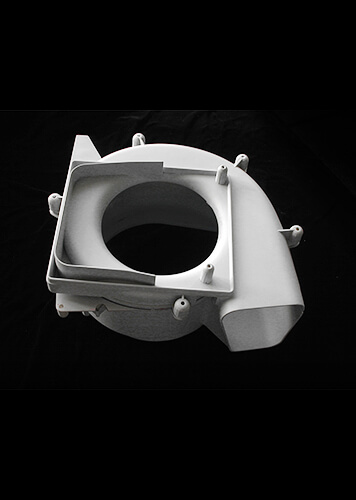

Automotive Audio Panel
Nylon PA12

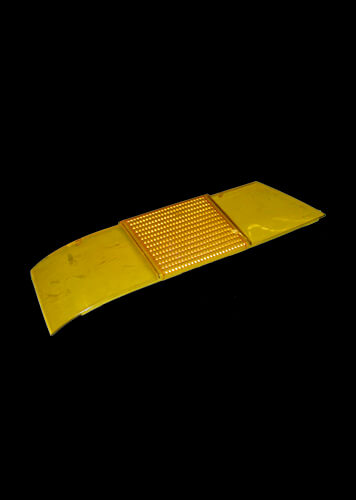

Automotive Backlight
Resin UTR8100 with surface finish dying color

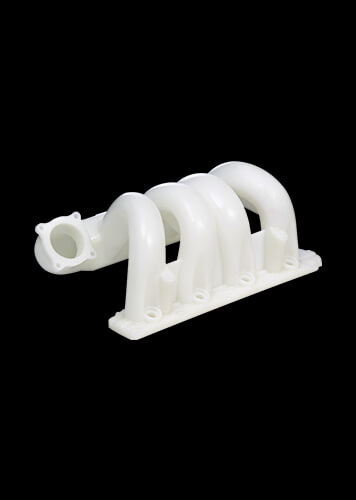

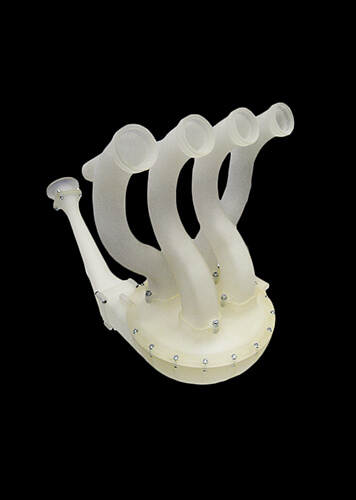

Automotive Engine Intake Manifold
Resin Somos Ledo
Automotive Engine Intake Manifold
Resin Somos Perform

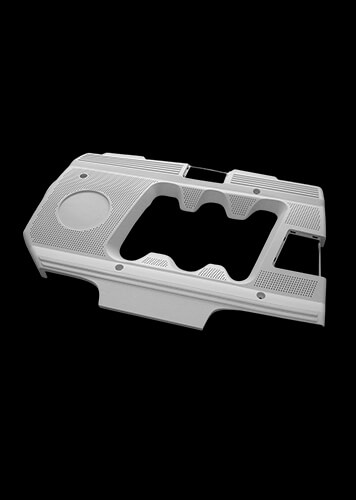

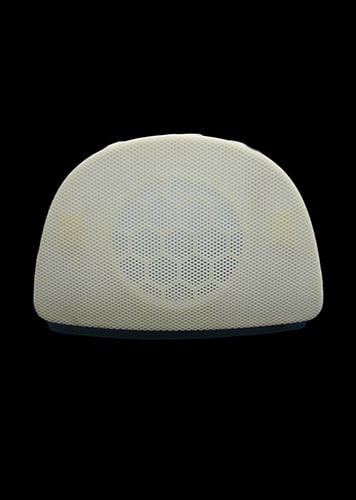

Automotive Interiors
Resin UTR8220
Automotive Interiors
Resin UTR8360 with surface finish spray painting color

The One-Stop Electronics Manufacturer

Unleashing Our Company's Strengths

PCBWay is a one-stop solution platform from prototyping, R&D to mass production. Utilizing our instant quoting platform and comprehensive supplier network, you can quickly obtain design validation and accelerate your product launch.

Learn more about PCBWay
  • 1,682,560
    Parts & Prototypes Produced
  • 52 & 4
    Partner Network & Industrial Base
  • 256000
    Engineers Served
  • 100
    Materials and Finishings
Bosch-logo
Tesla-logo
Panasonic-logo
Hp-logo
Siemens-Logo
SpaceX-Logo

Join Hundreds of Companies in Choosing PCBWay

FAQ's

How does 3D printing affect manufacturing costs in the automotive industry?

3D printing can reduce the process steps and material waste required to manufacture complex parts. It provides the ability to customize production, reducing inventory requirements and over-manufacturing of parts, thereby lowering manufacturing costs.


Can 3D printing enable lightweight design and optimized material utilization?

3D printing technology can realize complex internal structures and hollow designs, thereby reducing the weight of parts and improving the fuel efficiency of cars. In addition, because 3D printing is a layer-by-layer construction process, materials are used more efficiently, reducing scrap and material waste.


How does 3D printing promote car customization and personalization?

3D printing technology allows for customized production based on individual needs and preferences. Car manufacturers can manufacture customized car accessories, interior parts and even vehicle models according to customer requirements to meet consumers' personalized needs.


What impact does 3D printing have on the sustainability of the automotive industry?

3D printing technology can reduce material waste and energy consumption because it only uses the required amount of material and requires no additional process steps. This helps reduce carbon emissions and environmental impact, making the automotive industry more sustainable.
