Persistently Adhere to Stringent Quality Control

Get intant quote
siemens bosch hp panasonic haier tesla

PCBWay's Quality Control Measures

PCBWay focus on producing high-quality products that meet or exceed customers’ expectations.

Quality Control Solutions

Quality Control
We maintain high-quality standards through careful partner selection, top-notch materials, and adherence to international standards.
Customer Satisfaction
We value customer feedback and continuously strive to enhance our services and products, ensuring exceptional customer experiences.
Supply Chain Reliability
We closely monitor all partners involved in production and delivery to ensure a dependable supply chain, enabling timely project completion and meeting customers' supply needs.

PCBWay’s Manufacturing Standards

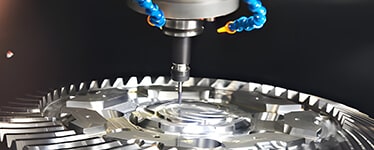

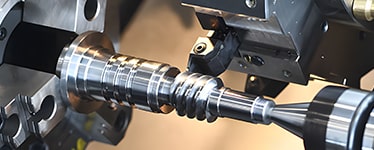

CNC Machining standards

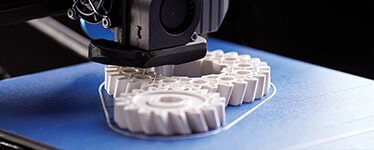

3D Printing standards
Sheet Metal standards
Injection Molding standards
Vacuum Casting standards

CNC Machining standards

We will adhere to ISO 2768-1 standards to control tolerances. In cases where tighter tolerances are required, a technical drawing will be necessary to indicate critical dimensions.

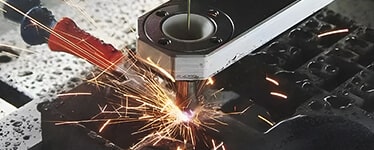

process-electrical

Electrical Discharge Machining

CNC Machining parameter standard

Limits for nominal size Plastics Coarse class (c) Metals Medium class (m)
0.5mm* to 3mm ±0.2mm ±0.1mm
3mm to 6mm ±0.3mm ±0.1mm
6mm to 30mm ±0.5mm ±0.2mm
30mm to 120mm ±0.8mm ±0.3mm
120mm to 400mm ±1.2mm ±0.5mm
400mm to 1000mm ±2.Omm ±0.8mm
1000mm to 2000mm ±3.0mm ±1.2mm
2000mm to 4000mm ±4.Omm ±2.0mm

PCBWay’s Quality Control Standard

PCBWay ensures top-notch quality standards from material selection to final inspection.

Preliminary Document Assessment

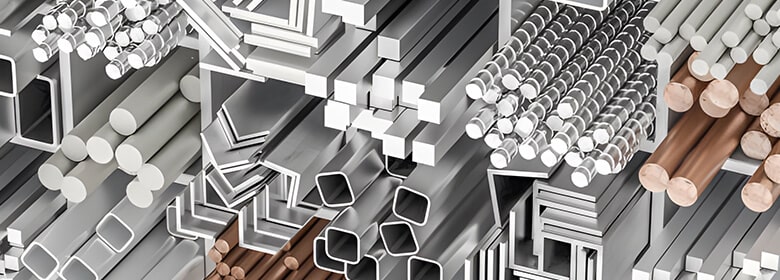

Stringent Material Quality Control

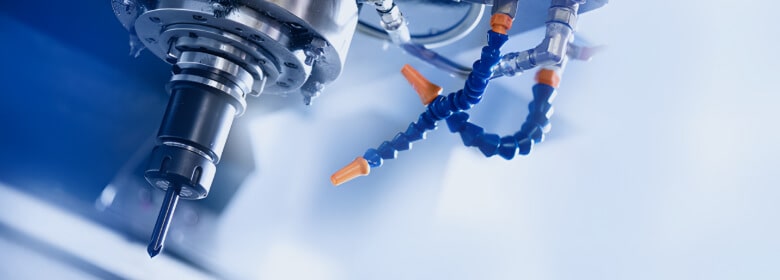

Advanced Manufacturing Machinery

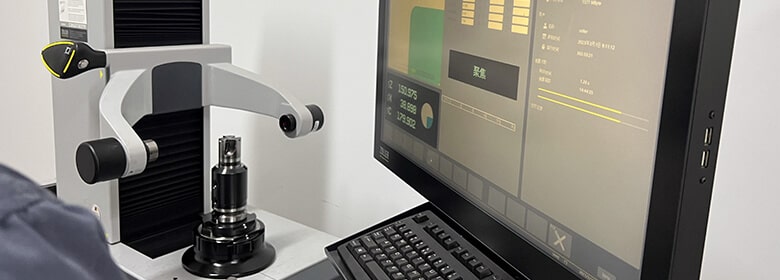

Continuous Quality Monitoring

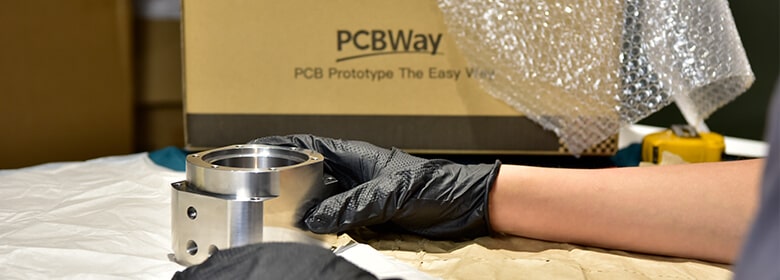

Final Product Evaluation
Thorough Oversight
preliminary document assessment

Our engineering team evaluates your part design for accuracy and compliance.

We prioritize structural integrity and meticulous workmanship.

We analyze the selected materials and surface finish requirements.

From Prototyping to Production

PCBWay upholds top-notch quality standards from material selection to final inspection in our production process.

Rapid-Prototyping

Rapid Prototyping

With our instant quoting and strong capacity, expect prototypes in short lead times.

strict production

Strict Production

Bridge the gap between design and product rollout seamlessly.

on demand production

On-Demand Manufacturing

Our full-service ensures high precision and quality products on demand.

Inside Our Specialized Manufacturing Factories

Sheet metal facility in Hangzhou, China
Established 2013

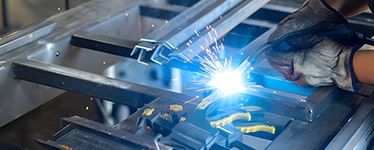

Capabilities Laser Cutting, Bending, Welding, Punching, etc
Machines 85
Equipment Amada, Muratec, Bystronic
3D printing factory in China
Established 2013

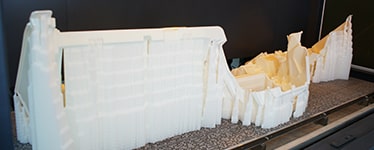

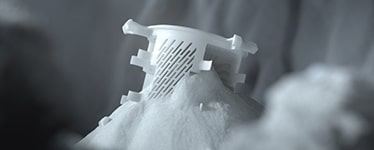

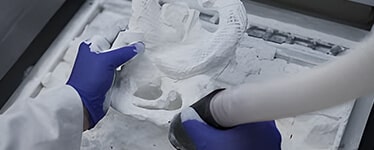

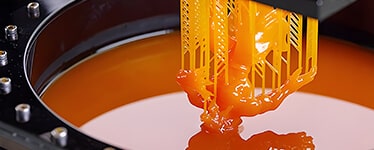

Capabilities SLA, SLS, DLP, MJF, FDM, SLM
Machines 200+
Equipment UnionTech, HPMJF, BLT
3D printing factory in Shanghai, China
Established 2013
Capabilities SLA, SLS, DLP, MJF, FDM, SLM
Machines 128
Equipment UnionTech, HPMJF, BLT
CNC machining factory in Hangzhou, China
Established 2013
Capabilities 5-Axis Milling, Lathe, Deep Hole Drilling, EDM, etc
Machines 100+
Equipment Mazak, Okuma, Makino
CNC machining factory in Shenzhen, China
Established 2013
Capabilities 5-Axis Milling, Lathe, Deep Hole Drilling, EDM, etc
Machines 54
Equipment Mazak, Okuma, Makino
CNC machining factory in Shanghai, China
Established 2013
Capabilities 5-Axis Milling, Lathe, Deep Hole Drilling, EDM, etc
Machines 72
Equipment Mazak, Okuma, Makino
Sheet metal facility in China
Established 2013
Capabilities Laser Cutting, Bending, Welding, Punching, etc
Machines 100+
Equipment Amada, Muratec, Bystronic

PCBWay's Advanced Equipment

To support our rigorous quality control procedures, our production facility is equipped with dedicated workshops for
meticulous inspections and cutting-edge equipment.

Amada Pega NCT Punch Machine

Amada Pega NCT Punch Machine

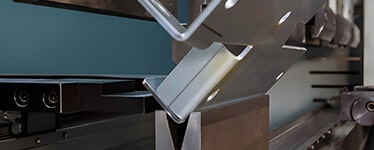

Amada Press Brake Machine

Amada Press Brake Machine

Mazak 3 axis 4 axis 5 axis

Mazak 3 axis 4 axis 5 axis

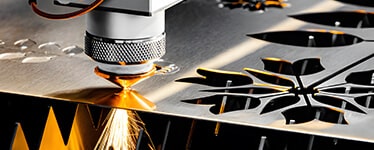

Mitsubishi Laser Cutting Machine

Mitsubishi Laser Cutting Machine

Sodick EDM Equipment

Sodick EDM Equipment

ISO

Quality Certifications

PCBWay's quality management system is ISO 9001:2015 certified. We also have manufacturing partners in our ecosystem with the following certifications:

PCBWay offers certifications for your orders including:

Resolving Quality Concerns for You

If your order does not meet your specifications, we offer options for rework or refund. Should you encounter any quality issues within one month of receiving your goods, please reach out to our experts. Notify us of the issue within five business days of receipt, and we will promptly address it within 1 to 3 business days.

Rework

Upon receiving a complaint, we thoroughly examine the design and samples to identify any discrepancies. We promptly address the complaint and initiate immediate rework as necessary.

Refund

Quickly process refunds after confirming product issues.Ensuring customer satisfaction and prioritizing customer interests.

PCBWay's Material Display

We have over 100 materials and 50+ surface treatment processes for you to choose from.

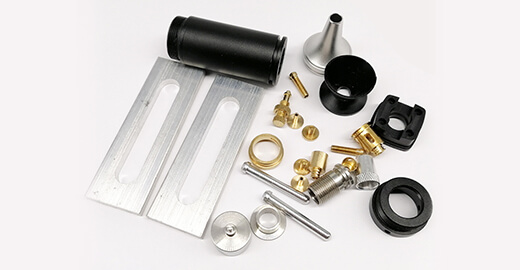

CNC machining

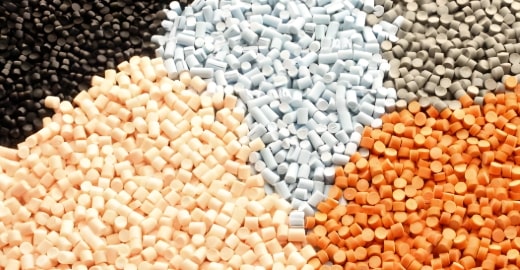

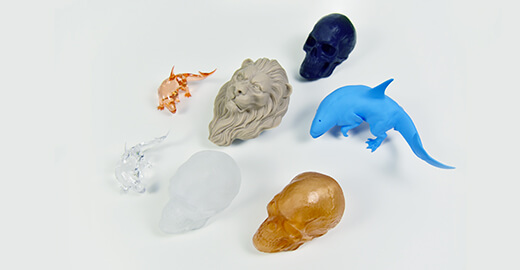

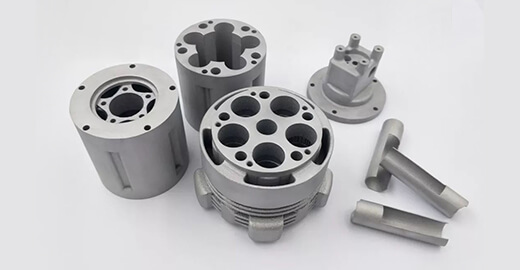

3D printing

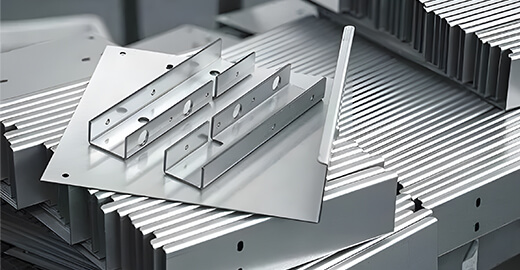

Sheet metal

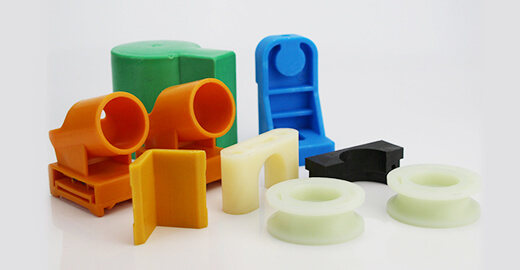

Injection molding
Vacuum casting
Various Surface Finishes Available

At PCBWay, we offer a variety of common surface treatments that help improve functionality and aesthetics.

Name (32) Colors Applicable Materials Description
Standard (As-Milled) (Ra 125μin) Standard (As-Milled) (Ra 125μin)
N/a

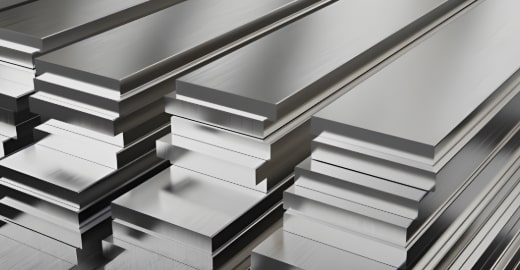

Metals
Plastics
Standard (As-Milled) (Ra 125μin) surface treatment is suitable for the manufacturing and processing of many metal parts, especially for structural parts that do not require high surface requirements but require high mechanical performance and durability.
Bead blast + Anodized color Bead blast + Anodized color
Metals
Bead blast + Anodized color can form an oxide film on the blasted metal surface and give it a customized color effect by means of dye or electrolytic coloring.
Anodized Anodized
Metals
Anodizing is a surface treatment for metal parts that improves corrosion resistance and surface hardness. It is widely used in industries such as aerospace, automotive, construction, electronics, and home furnishings.
Electrically conductive oxidation Electrically conductive oxidation
N/a
Metals
Electrically conductive oxidation is commonly used in industries such as electronic components and conductive materials, forming conductive oxide layers through oxidation treatment, providing electrical conductivity and protection.
Black oxide Black oxide
N/a
Metals
Black oxide is a common surface treatment for metal parts that enhances corrosion resistance and aesthetics. This treatment is applicable in many industries, including automotive parts, mechanical manufacturing, and decorative items.
Brushed Brushed
N/a
Metals
Brushed is commonly used in industries such as home decor and appliances, creating a textured metal surface with linear patterns through brushing, enhancing the product's texture and aesthetics.
Bead Blast Bead Blast
N/a
Metals
Plastics
Bead blast is a common surface treatment that propels abrasive particles onto a part's surface using high-pressure air, applicable in many industries such as automotive, aerospace, construction, and furniture.
Spray painting - Matt paint Spray painting - Matt paint
Applicable to all pantone colors-Matt
Metals
Plastics
Spray painting - Matt paint is commonly used in industries such as furniture and automotive, achieving a soft matte finish through spray application, enhancing the product's texture and contemporary feel.
Total: 32 1 2 3 4 1 /4 Page

Innovative Applications in Multiple Industries

PCBWay is designed to help you stand out in the industry, bringing advanced, precise and high-quality products to your business.

FAQ's

How does CNC machining and 3D printing affect the surface quality of products?

CNC machining typically provides a high surface quality with a smooth, fine surface texture. However, the surface quality of 3D printing is usually rough, and subsequent processing is required to achieve a better surface finish. However, with the development of 3D printing technology, some advanced 3D printing methods are also able to provide higher quality surfaces, but usually require additional processing steps.

How is the quality control of CNC machining and 3D printing in manufacturing?

Both CNC machining and 3D printing require quality control to ensure products meet specifications. In CNC machining, common quality control methods include dimensional inspection using precision measuring tools, surface quality assessment, and functional testing. For 3D printing, quality control includes checking printing parameters, material quality, and print quality, as well as conducting post-processing and testing.

How does PCBWay ensure high-quality manufacturing?

Equipment Maintenance and Calibration: Regular maintenance and calibration of machine tool equipment is fundamental to ensuring high-quality manufacturing. Maintain the accuracy and performance of equipment, including regular inspection and replacement of tools, checking the accuracy of sensors and measuring instruments, etc.

Appropriate process planning: formulate appropriate process planning, including reasonable cutting parameters, tool selection and machining path planning. Ensuring that each process is carefully planned and optimized to achieve the required precision and surface quality requirements.

Quality Control Measures: Establish strict quality control measures, including the use of advanced measuring instruments for dimensional inspection and surface quality assessment. Carry out process monitoring and statistical process control to discover and correct potential quality problems in time.

Material selection and inspection: Select high-quality raw materials that meet the requirements, and conduct incoming inspection to ensure their quality meets the specifications. Proper material selection is critical to the quality and performance of the final product.

Training and skills: Provide necessary training and skill improvement for operators to ensure that they have the correct processing knowledge and technical capabilities, and can accurately operate machine tools and implement process requirements.

Continuous improvement: regularly evaluate and analyze the production process, look for opportunities for improvement, and take appropriate measures to improve production efficiency and product quality. Drive continuous improvement with advanced technologies and tools, such as data analytics and automated systems.


What services can PCBWay provide you?

We offer rapid prototyping, small-scale and large-scale batch manufacturing with CNC machining, 3D printing, sheet metal, injection molding, vacuum casting and etc. Our factories are ISO-9001 certified, instant online quotation and lead time from 3 days.

How to carry out the quality control of CNC machining in manufacturing?

Quality control in CNC machining during production manufacturing is crucial to ensure that products meet specifications and requirements. The process involves various steps, including design validation, material inspection, setting appropriate machining parameters, validating CNC programs, conducting first piece inspections, monitoring processes, performing periodic and final inspections, checking surface quality, and maintaining records for traceability. These methods collectively aim to guarantee dimensional accuracy, surface finish, and functionality of the final product. By implementing effective quality control measures, CNC machining ensures consistent and reliable results, meeting the highest standards of quality in various industries.

Why are there oil stains on the surface of black resin parts?

Resin parts are 3D printed using SLA technology. After printing is complete, remove the supports and sand them. After the product is polished, the surface turns a little white, and then we spray it with a layer of transparent protective oil.

The oil is non-toxic and harmless. After you receive it, you can wipe it clean with cotton cloth or wash it with water.


Why do 3D printing orders often have EQ regarding wall thickness?

The wall thickness directly determines the strength of the printed object, and also determines whether the model can be printed. Once the model is printed, it also goes through support removal, grinding and sandblasting, which determine the minimum wall thickness for different materials. The model is printable only when the wall thickness meets the minimum requirement.


However, many 3D printed designs do not meet the standard wall thickness requirements. At this time, there is a risk of damage or even failure in the printing.

Another question that everyone is more concerned about is why the wall thickness issue is not pointed out at the beginning of the order review?

The reason is that our 3D printing review is based on the automatic quotation of the pricing system, and the system cannot automatically identify some wall thickness issues.

Of course, we are also actively developing a more accurate quotation system to ensure the accuracy of quotations while ensuring their timeliness.

Anyway, we recommend choosing the following 2 options when placing an order.


*Customer knows about the thin walls designed do not meet the wall thickness standard, but needs to print as-is and take all risks.

*Customer knows about the threads designed do not meet the thread printing standard, but needs to print as-is and take all risks.


Why are the CNC or 3D printing parts I receive from different batches different?

This problem is common. Since most of our products are prototype, we cannot achieve consistent surface finishes just like batch production. For products without surface treatment, different equipment, different operators, different tools, etc. will lead to differences in the processed surface.

For products with surface treatment, due to the particularity and scarcity of the surface finish process, different batches of orders cannot be guaranteed to have the same finish. For example: Aluminum anodized color, there will be color difference more or less with each time, even though you choose the same opition of color.

If you need the totally same surface finish of batch products and samples, it is recommended to keep 1-2 samples at PCBWay, and then we can mass-produce the specified products according to the samples.
